ZFProtocol Class Reference

base class of all protocol of ZFFramework More...

#include <ZFProtocol.h>

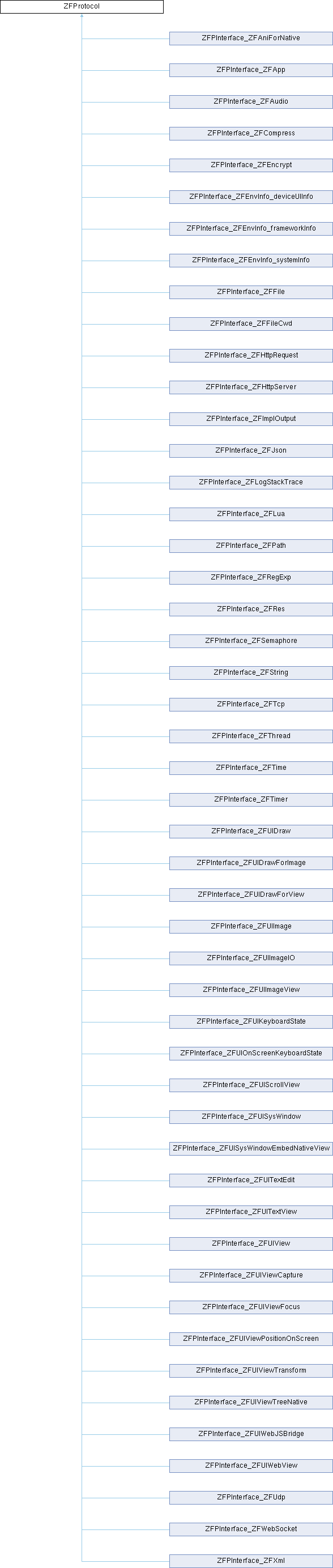

Inheritance diagram for ZFProtocol:

Public Member Functions
virtual void	protocolOnInit (void)
	called to init the protocol
virtual void	protocolOnInitFinish (void)
	see protocolOnInit
virtual void	protocolOnDeallocPrepare (void)
	see protocolOnInit
virtual void	protocolOnDealloc (void)
	see protocolOnInit
virtual ZFProtocolInstanceState	protocolInstanceState (void)
	protocol instance's state
virtual const zfchar *	protocolName (void) const
	get the name of the protocol module, e.g. "ZFObject"
virtual const zfchar *	protocolImplName (void) const
	get the name of the protocol implementation, e.g. "ZFObject_default"
virtual ZFProtocolLevel	protocolImplLevel (void) const
	get the level of the protocol implementation
virtual const zfchar *	protocolImplPlatformHint (void) const
	get type hint of the implementation or empty string if not defined, e.g. "iOS:NSString" for iOS's string impl, use ZFPROTOCOL_IMPLEMENTATION_PLATFORM_HINT to register
virtual void	objectInfoT (zfstring &ret) const
	see objectInfo
virtual zfstring	objectInfo (void) const
	get a short info about this object

Detailed Description

base class of all protocol of ZFFramework

Member Function Documentation

protocolOnInit()

virtual void ZFProtocol::protocolOnInit ( void )

inlinevirtual

called to init the protocol

similar to ZFObject::objectOnInit, we have these functions for protocol to do custom init steps (ordered by life cycle):

1. normal object constructor
2. protocolOnInit : called when first time accessed
3. protocolOnInitFinish : called when first time accessed
4. protocolOnDeallocPrepare : called during ZFFrameworkCleanup as level ZFLevelZFFrameworkEssential, or called when changing impl manually
5. protocolOnDealloc : called during ZFFrameworkCleanup as level ZFLevelZFFrameworkStatic, or called when changing impl manually
6. normal object destructor

protocolName()

virtual const zfchar * ZFProtocol::protocolName ( void ) const

inlinevirtual

get the name of the protocol module, e.g. "ZFObject"

Reimplemented in ZFPInterface_ZFAniForNative, ZFPInterface_ZFApp, ZFPInterface_ZFAudio, ZFPInterface_ZFCompress, ZFPInterface_ZFEncrypt, ZFPInterface_ZFEnvInfo_deviceUIInfo, ZFPInterface_ZFEnvInfo_frameworkInfo, ZFPInterface_ZFEnvInfo_systemInfo, ZFPInterface_ZFFile, ZFPInterface_ZFFileCwd, ZFPInterface_ZFHttpRequest, ZFPInterface_ZFHttpServer, ZFPInterface_ZFImplOutput, ZFPInterface_ZFJson, ZFPInterface_ZFLogStackTrace, ZFPInterface_ZFLua, ZFPInterface_ZFPath, ZFPInterface_ZFRegExp, ZFPInterface_ZFRes, ZFPInterface_ZFSemaphore, ZFPInterface_ZFString, ZFPInterface_ZFTcp, ZFPInterface_ZFThread, ZFPInterface_ZFTime, ZFPInterface_ZFTimer, ZFPInterface_ZFUdp, ZFPInterface_ZFUIDraw, ZFPInterface_ZFUIDrawForImage, ZFPInterface_ZFUIDrawForView, ZFPInterface_ZFUIImage, ZFPInterface_ZFUIImageIO, ZFPInterface_ZFUIImageView, ZFPInterface_ZFUIKeyboardState, ZFPInterface_ZFUIOnScreenKeyboardState, ZFPInterface_ZFUIScrollView, ZFPInterface_ZFUISysWindow, ZFPInterface_ZFUISysWindowEmbedNativeView, ZFPInterface_ZFUITextEdit, ZFPInterface_ZFUITextView, ZFPInterface_ZFUIView, ZFPInterface_ZFUIViewCapture, ZFPInterface_ZFUIViewFocus, ZFPInterface_ZFUIViewPositionOnScreen, ZFPInterface_ZFUIViewTransform, ZFPInterface_ZFUIViewTreeNative, ZFPInterface_ZFUIWebJSBridge, ZFPInterface_ZFUIWebView, ZFPInterface_ZFWebSocket, and ZFPInterface_ZFXml.

protocolImplPlatformHint()

virtual const zfchar * ZFProtocol::protocolImplPlatformHint ( void ) const

inlinevirtual

get type hint of the implementation or empty string if not defined, e.g. "iOS:NSString" for iOS's string impl, use ZFPROTOCOL_IMPLEMENTATION_PLATFORM_HINT to register

Note

usually for debug use only, do not abuse it
for some implementation that depends on other packaged implementations, you may check this value to be your expected value and assert false if not (for example, view's impl usually depends on string's impl)

---

The documentation for this class was generated from the following file:

• ZFProtocol.h
