ZFUIScrollView Class Reference

native scroll view More...

#include <ZFUIScrollView.h>

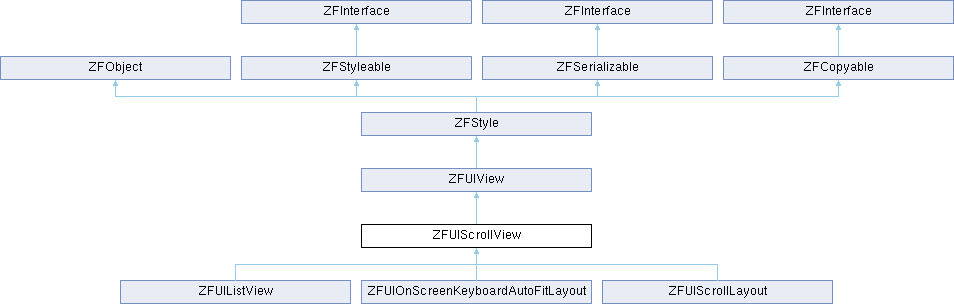

Inheritance diagram for ZFUIScrollView:

Public Types
enum
Public Types inherited from ZFUIView
enum
Public Types inherited from ZFStyle
enum
Public Types inherited from ZFObject
enum

Public Member Functions
virtual const ZFClass *	classData (void)
	get instance's class info
virtual zfbool &	scrollEnable ()
	whether the scroll view is scrollable, zftrue by default
virtual void	scrollEnable (zfbool const &propertyValue)
	see scrollEnable
virtual zfbool &	scrollBounceHorizontal ()
	if content is larger than scroll view, make it scrollable even if reaches edge, true by default
virtual void	scrollBounceHorizontal (zfbool const &propertyValue)
	see scrollBounceHorizontal
virtual zfbool &	scrollBounceVertical ()
	if content is larger than scroll view, make it scrollable even if reaches edge, true by default
virtual void	scrollBounceVertical (zfbool const &propertyValue)
	see scrollBounceVertical
virtual zfbool &	scrollBounceHorizontalAlways ()
	scrollable even if content is not larger than scrollview, false by default
virtual void	scrollBounceHorizontalAlways (zfbool const &propertyValue)
	see scrollBounceHorizontalAlways
virtual zfbool &	scrollBounceVerticalAlways ()
	scrollable even if content is not larger than scrollview, false by default
virtual void	scrollBounceVerticalAlways (zfbool const &propertyValue)
	see scrollBounceVerticalAlways
virtual zfbool &	scrollAlignToAxis ()
	whether limit scroll horizontal or vertical only, false by default
virtual void	scrollAlignToAxis (zfbool const &propertyValue)
	see scrollAlignToAxis
virtual zfbool &	scrollAlignToPageHorizontal ()
	whether align to page when scroll, false by default
virtual void	scrollAlignToPageHorizontal (zfbool const &propertyValue)
	see scrollAlignToPageHorizontal
virtual zfbool &	scrollAlignToPageVertical ()
	whether align to page when scroll, false by default
virtual void	scrollAlignToPageVertical (zfbool const &propertyValue)
	see scrollAlignToPageVertical
virtual ZFUIRect &	scrollContentFrame ()
	scroll view's content frame
virtual void	scrollContentFrame (ZFUIRect const &propertyValue)
	see scrollContentFrame
virtual void	scrollToFitRange ()
	cancel over scroll and ensure content offset in range
virtual void	scrollChildToVisible (ZFUIView *child, const ZFUIMargin &margin=(ZFUIMarginCreate(ZFUIGlobalStyle::DefaultStyle() ->itemMargin())), zfbool scrollWithAni=(_ZFT_t_zftrue))
	scroll child to proper position so that it's visible to user
virtual void	scrollAreaMarginAdd (const ZFUIMargin &margin)
	margin for impl to modify scrollable area, ZFUIMarginZero by default
virtual void	scrollAreaMarginRemove (const ZFUIMargin &margin)
	see scrollAreaMarginAdd
virtual const ZFUIMargin &	scrollAreaMargin ()
	see scrollAreaMarginAdd
virtual const ZFUIRect &	scrollArea ()
	scrollable frame excluding scrollAreaMargin, valid only if layouted
virtual void	scrollThumbHorizontalClass (const ZFClass *cls)
	change current scroll thumb, null to disable
virtual const ZFClass *	scrollThumbHorizontalClass ()
	see scrollThumbHorizontalClass
virtual void	scrollThumbVerticalClass (const ZFClass *cls)
	see scrollThumbHorizontalClass
virtual const ZFClass *	scrollThumbVerticalClass ()
	see scrollThumbHorizontalClass
virtual const ZFClass *	scrollerClass ()
	class for internal scroller, must be type of ZFUIScroller, ZFUIScrollerClass by default
virtual zffloat	scrollContentOffsetLeft ()
	util method to get offset of the scroll content
virtual zffloat	scrollContentOffsetTop ()
	see scrollContentOffsetLeft
virtual zffloat	scrollContentOffsetRight ()
	see scrollContentOffsetLeft
virtual zffloat	scrollContentOffsetBottom ()
	see scrollContentOffsetLeft
virtual void	scrollContentFrameAnimated (const ZFUIRect &scrollContentFrame)
	animated change scroll content frame
virtual void	scrollContentFrameUpdate (const ZFUIRect &scrollContentFrame)
	change scroll content frame without interrupt current scroll animation
virtual void	scrollByPoint (zffloat xPos, zffloat yPos)
	animated scroll to desired position
virtual ZFUIPoint	scrollByPointEndPoint ()
	return end point of scrollByPoint, or current content offset if not scrolling
virtual void	scrollBySpeed (zffloat xSpeedInPixelsPerSecond, zffloat ySpeedInPixelsPerSecond)
	scroll by desired initial speed, in pixels per second
virtual zffloat	scrollBySpeedCurrentSpeedX ()
	return current speed of scrollBySpeed
virtual zffloat	scrollBySpeedCurrentSpeedY ()
	return current speed of scrollBySpeed
virtual ZFUIPoint	scrollBySpeedEndPointPredicted ()
	return predicted end point of scrollBySpeed, or current content offset if not scrolling, valid only if isn't bouncing and won't bouncing when stop
virtual ZFUIPoint	scrollEndPointPredicted ()
	scrollByPointEndPoint or scrollBySpeedEndPointPredicted depending on scroll type
virtual void	autoScrollStartX (zffloat speedInPixelsPerSecond)
	start an auto scroll with specified speed
virtual void	autoScrollStartY (zffloat speedInPixelsPerSecond)
	see autoScrollStartX
virtual void	autoScrollStopX ()
	see autoScrollStartX
virtual void	autoScrollStopY ()
	see autoScrollStartX
virtual zffloat	autoScrollSpeedX ()
	current auto scroll speed, 0 means not auto scrolling, see autoScrollStartX
virtual zffloat	autoScrollSpeedY ()
	current auto scroll speed, 0 means not auto scrolling, see autoScrollStartX
virtual void	scrollSimulateDragBegin (const ZFUIPoint &mousePos, zftimet mouseTime)
	simulate drag
virtual void	scrollSimulateDrag (const ZFUIPoint &mousePos, zftimet mouseTime)
	simulate drag
virtual void	scrollSimulateDragEnd (zftimet mouseTime, zfbool needScrollAni=(_ZFT_t_zftrue))
	simulate drag
virtual ZFUIScrollViewState	scrollViewState ()
	current state for the scroll view
Public Member Functions inherited from ZFUIView
virtual void	serializableRefLayoutParam (ZFUILayoutParam *serializableRefLayoutParam)
	store ref layout param for this view for reducing serialization output size
virtual ZFUILayoutParam *	serializableRefLayoutParam (void)
	see serializableRefLayoutParam
virtual zfstring &	viewId ()
	used to identify a view, empty by default
virtual void	viewId (zfstring const &propertyValue)
	see viewId
virtual zfbool &	visible ()
	visible or not, zftrue by default
virtual void	visible (zfbool const &propertyValue)
	see visible
virtual zfbool	viewTreeInWindow ()
	true if added to ZFUISysWindow
virtual zfbool	viewTreeVisible ()
	true only if added to ZFUISysWindow and all of parents are visible
virtual zffloat &	alpha ()
	view's alpha, 1 by default
virtual void	alpha (zffloat const &propertyValue)
	see alpha
virtual zfbool &	viewUIEnable ()
	whether the view should receive user interaction (doesn't affect children, see viewUIEnableTree)
virtual void	viewUIEnable (zfbool const &propertyValue)
	see viewUIEnable
virtual zfbool &	viewUIEnableTree ()
	whether the view as well as all its children should receive user interaction, see viewUIEnable
virtual void	viewUIEnableTree (zfbool const &propertyValue)
	see viewUIEnableTree
virtual zfbool	viewUIEnableFixed ()
	true if viewUIEnable and all of parents are viewUIEnableTree
virtual zfbool	viewUIEnableTreeFixed ()
	true if viewUIEnableTree and all of parents are viewUIEnableTree
virtual zfbool &	mouseHoverEnable ()
	whether enable mouse hover event, see ZFUIView::viewEventOnMouseEvent, false by default
virtual void	mouseHoverEnable (zfbool const &propertyValue)
	see mouseHoverEnable
virtual zfbool &	focusable ()
	whether the view can be focused, false by default
virtual void	focusable (zfbool const &propertyValue)
	see focusable
virtual zfbool &	focusObtainWhenClick ()
	whether try to obtain focus when clicked down, true by default
virtual void	focusObtainWhenClick (zfbool const &propertyValue)
	see focusObtainWhenClick
virtual ZFUIRect const &	viewFrame ()
	the view's frame
virtual void	viewFrame (ZFUIRect const &viewFrame)
	see viewFrame
virtual const ZFUIRect &	viewFramePrev ()
	previous viewFrame
virtual zfbool	viewFrameOverrided ()
	true if viewFrame changed by user, use viewFrameReset to reset
virtual void	viewFrameReset ()
	see viewFrame
virtual zffloat	x ()
	see viewFrame
virtual void	x (zffloat const &propertyValue)
	see viewFrame
virtual zffloat	y ()
	see viewFrame
virtual void	y (zffloat const &propertyValue)
	see viewFrame
virtual zffloat	width ()
	see viewFrame
virtual void	width (zffloat const &propertyValue)
	see viewFrame
virtual zffloat	height ()
	see viewFrame
virtual void	height (zffloat const &propertyValue)
	see viewFrame
virtual zffloat	centerX ()
	see viewFrame
virtual void	centerX (zffloat const &propertyValue)
	see viewFrame
virtual zffloat	centerY ()
	see viewFrame
virtual void	centerY (zffloat const &propertyValue)
	see viewFrame
virtual void	viewSizeFixed (const ZFUISize &size)
	util method to set fixed size, by setting both of viewSizeMin and viewSizeMax
virtual void	viewSizeFixed (zffloat width, zffloat height)
	see viewSizeFixed
virtual ZFUISize &	viewSizeMin ()
	min size, ZFUISizeZero by default
virtual void	viewSizeMin (ZFUISize const &propertyValue)
	see viewSizeMin
virtual ZFUISize &	viewSizeMax ()
	max size, negative value means not set, ZFUISizeInvalid by default
virtual void	viewSizeMax (ZFUISize const &propertyValue)
	see viewSizeMax
virtual ZFUIColor &	bgColor ()
	background color, ZFUIColorZero by default
virtual void	bgColor (ZFUIColor const &propertyValue)
	see bgColor
virtual zffloat &	translateX ()
	see transformAvailable
virtual void	translateX (zffloat const &propertyValue)
	see translateX
virtual zffloat &	translateY ()
	see transformAvailable
virtual void	translateY (zffloat const &propertyValue)
	see translateY
virtual zffloat &	translateZ ()
	see transformAvailable
virtual void	translateZ (zffloat const &propertyValue)
	see translateZ
virtual zffloat &	scaleX ()
	see transformAvailable
virtual void	scaleX (zffloat const &propertyValue)
	see scaleX
virtual zffloat &	scaleY ()
	see transformAvailable
virtual void	scaleY (zffloat const &propertyValue)
	see scaleY
virtual zffloat &	scaleZ ()
	see transformAvailable
virtual void	scaleZ (zffloat const &propertyValue)
	see scaleZ
virtual zffloat &	rotateX ()
	see transformAvailable
virtual void	rotateX (zffloat const &propertyValue)
	see rotateX
virtual zffloat &	rotateY ()
	see transformAvailable
virtual void	rotateY (zffloat const &propertyValue)
	see rotateY
virtual zffloat &	rotateZ ()
	see transformAvailable
virtual void	rotateZ (zffloat const &propertyValue)
	see rotateZ
virtual void	bind (ZFObject *owner, const zfstring &propertyName)
	util method to bind this view to owner's property, and auto setup viewId if not set
virtual void	bindEvent (const zfstring &eventName, ZFObject *owner, const zfstring &methodName)
	util method to bind this view's event to owner's method
virtual void	bindEvent (zfidentity eventId, ZFObject *owner, const zfstring &methodName)
	util method to bind this view's event to owner's method, see bindEvent
virtual void *	nativeImplView ()
	native implementation view
virtual zfbool	nativeImplViewRequireVirtualIndex ()
	whether the nativeImplView cost one virtualIndex
virtual const ZFUIMargin &	nativeImplViewMargin ()
	inner margin between ZFUIView and the internal nativeImplView
virtual void	nativeImplViewMarginUpdate ()
	see nativeImplViewMargin, layoutRequest if the final value actually changed
virtual const ZFUIRect &	nativeImplViewFrame ()
	frame of nativeImplView
virtual ZFUIMargin &	nativeImplViewMarginCustom ()
	see nativeImplViewMargin, ZFUIMarginZero by default
virtual void	nativeImplViewMarginCustom (ZFUIMargin const &propertyValue)
	see nativeImplViewMarginCustom
virtual void *	nativeView ()
	native container view
virtual zfbool	focused ()
	whether the view currently focused
virtual void	focusRequest (zfbool focus)
	request to obtain or resign focus, result can be checked by focused
virtual zfanyT< ZFUIView >	focusFind ()
	recursively to find focused child, take care of performance
virtual zfanyT< ZFUIView >	parent ()
	parent view or null if none
virtual void	removeFromParent ()
	remove this view from parent or do nothing if no parent
virtual zffloat &	UIScale ()
	UI scale for view tree.
virtual void	UIScale (zffloat const &propertyValue)
	see UIScale
virtual zffloat	UIScaleInherited ()
	see UIScale
virtual zffloat	UIScaleForImpl ()
	see UIScale
virtual zffloat	UIScaleForPixel ()
	see UIScale
virtual zffloat	UIScaleFixed ()
	see UIScale
virtual zfautoT< ZFUILayoutParam >	layoutParamCreate ()
	create layout param, calling layoutParamClass to create instance and layoutParamOnUpdate to update
virtual void	layoutParam (ZFUILayoutParam *layoutParam)
	manually set layout param
virtual zfanyT< ZFUILayoutParam >	layoutParam ()
	get self's layout param, valid only while the view has parent
virtual void	layoutRequest ()
	set need layout
virtual zfbool	layoutRequested ()
	true if need layout
virtual zfbool	layouting ()
	true if currently being layouted
virtual const ZFUISize &	layoutMeasure (const ZFUISize &sizeHint, const ZFUISizeParam &sizeParam)
	measure the view
virtual const ZFUISize &	layoutMeasuredSize ()
	get measured size, invalid if not measured
virtual void	layoutIfNeed ()
	force to layout if need
virtual ZFUIPoint	layoutChildOffset ()
	get child offset to this view
virtual zfanyT< ZFUIView >	childFindById (const zfstring &viewId, zfbool findRecursively=(_ZFT_t_zftrue), zfbool includeInternalViews=(_ZFT_t_zffalse))
	find view by viewId, return the view or null if not found
virtual zfanyT< ZFUIView >	childFindByClass (const ZFClass *cls, zfbool findRecursively=(_ZFT_t_zftrue), zfbool includeInternalViews=(_ZFT_t_zffalse))
	find view by class, return the view or null if not found
virtual zfauto	childForEach (const ZFListener &impl, zfbool findRecursively=(_ZFT_t_zftrue), zfbool includeInternalViews=(_ZFT_t_zffalse))
	call custom impl for each child
virtual zfanyT< ZFUILayoutParam >	childWithParam (ZFUIView *view, ZFUILayoutParam *layoutParam, zfindex atIndex=(((zfindex) -1)))
	add view with layout param, param must be created by layoutParamCreate
zfanyT< ZFUILayoutParam >	child (const zfany &view, zfindex atIndex=((zfindex) -1))
	add child and return child's layoutParam, see childWithParam
virtual void	childRemove (ZFUIView *view)
	remove view or do nothing if view isn't added to this view
virtual void	childRemoveAt (zfindex index)
	remove view at index or assert fail if index out of range
virtual void	childRemoveAll ()
	remove all child view
virtual void	childMove (zfindex fromIndex, zfindex toIndexOrIndexMax)
	move view, make toIndexOrIndexMax as zfindexMax() to move to top most, and 0 to bottom most, do nothing if index invalid or have no change
virtual void	childMove (ZFUIView *child, zfindex toIndexOrIndexMax)
	see childMove
virtual void	childReplaceAt (zfindex atIndex, ZFUIView *toReplace)
	replace child at index, assert fail if index out of range or view to replace already has parent
virtual zfindex	childCount ()
	get child view count
virtual zfanyT< ZFUIView >	childAt (zfindex index)
	get child view at index or assert fail if out of range
virtual zfindex	childFind (ZFUIView *view)
	return index of view or zfindexMax() if not child of this view
virtual ZFCoreArray< zfautoT< ZFUIView > >	childArray ()
	get the child view array
virtual ZFUIViewChildLayer	viewLayer ()
	this view belongs to which layer of parent, valid only if parent is not null
virtual ZFCoreArray< zfautoT< ZFUIView > >	childRawArray ()
	return all children including internal views, see childArray
virtual zfanyT< ZFUILayoutParam >	internalImplViewAdd (ZFUIView *view, ZFUILayoutParam *layoutParam=(zft_zfnull), zfbool addAsTopMost=(_ZFT_t_zftrue))
	see internalBgViewAdd
virtual void	internalImplViewRemove (ZFUIView *view)
	see internalBgViewAdd
virtual ZFCoreArray< zfautoT< ZFUIView > >	internalImplViewArray ()
	see internalBgViewAdd
virtual zfanyT< ZFUILayoutParam >	internalBgViewAdd (ZFUIView *view, ZFUILayoutParam *layoutParam=(zft_zfnull), zfbool addAsTopMost=(_ZFT_t_zftrue))
	internal view which is independent from normal view
virtual void	internalBgViewRemove (ZFUIView *view)
	see internalBgViewAdd
virtual ZFCoreArray< zfautoT< ZFUIView > >	internalBgViewArray ()
	usually for debug use only, try to avoid use this in your app for other purpose
virtual zfanyT< ZFUILayoutParam >	internalFgViewAdd (ZFUIView *view, ZFUILayoutParam *layoutParam=(zft_zfnull), zfbool addAsTopMost=(_ZFT_t_zftrue))
	see internalBgViewAdd
virtual void	internalFgViewRemove (ZFUIView *view)
	see internalBgViewAdd
virtual ZFCoreArray< zfautoT< ZFUIView > >	internalFgViewArray ()
	see internalBgViewAdd
virtual void	internalViewAutoSerializeTagAdd (const zfstring &tag)
	used to apply auto serialize logic to internal views
virtual void	internalViewAutoSerializeTagRemove (const zfstring &tag)
	see internalViewAutoSerializeTagAdd
virtual void	internalViewAutoSerializeTagRemoveAll ()
	see internalViewAutoSerializeTagAdd
virtual void	internalViewAutoSerializeTagGetAllT (ZFCoreArray< zfstring > &ret)
	see internalViewAutoSerializeTagAdd
virtual ZFCoreArray< zfstring >	internalViewAutoSerializeTagGetAll ()
	see internalViewAutoSerializeTagAdd
virtual void	viewEventSend (ZFUIEvent *event)
	directly send a event, use with caution
Public Member Functions inherited from ZFObject
zfindex	objectRetainCount (void)
	return the object's retain count
void	objectInfoOfInstanceT (zfstring &ret)
	see objectInfoOfInstance
zfstring	objectInfoOfInstance (void)
	return a short string describe the object instance
void	objectInfoT (zfstring &ret)
	see objectInfo
zfstring	objectInfo (void)
	return object info
zfidentity	objectHash (void)
	get hash of this object
ZFCompareResult	objectCompare (ZFObject *anotherObj)
	compare with anotherObj
ZFCompareResult	objectCompareValue (ZFObject *anotherObj)
	explicitly compare object by logical value, see objectCompare
virtual zfauto	invoke (const zfstring &methodName)
	util method to perform ZFDI_invoke, do nothing if fail
virtual zfauto	invoke (const zfstring &methodName, ZFObject *param0, ZFObject *param1=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param2=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param3=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param4=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param5=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param6=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param7=((ZFObject *const &) _ZFP_ZFMP_DEF))
	util method to perform ZFDI_invoke, do nothing if fail
virtual zfbool	invokeT (zfauto &ret, zfstring *errorHint, const zfstring &methodName, ZFObject *param0=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param1=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param2=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param3=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param4=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param5=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param6=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param7=((ZFObject *const &) _ZFP_ZFMP_DEF))
	util method to perform ZFDI_invoke, do nothing if fail
virtual zfauto	invokeDetail (const zfstring &methodName, const ZFCoreArray< zfauto > &params, zfbool *success=zft_zfnull, zfstring *errorHint=zft_zfnull)
	util method to perform ZFDI_invoke, do nothing if fail
zfbool	objectTagExist (void)
	see objectTag, true if this object has tag, and tag can be checked by objectTagGetAllKeyValue
void	objectTag (const zfstring &key, ZFObject *tag)
	used to hold a object for app's use, auto retained
zfany	objectTag (const zfstring &key)
	see objectTag
void	objectTagGetAllKeyValue (ZFCoreArray< zfstring > &allKey, ZFCoreArray< zfauto > &allValue)
	get all key value
void	objectTagRemove (const zfstring &key)
	remove tag, same as set tag to null
zfauto	objectTagRemoveAndGet (const zfstring &key)
	remove tag, return removed tag or null if not exist
void	objectTagRemoveAll (void)
	remove all tag
void	observerAdd (zfidentity eventId, const ZFListener &observer, ZFLevel observerLevel=ZFLevelAppNormal)
	see observerNotify
void	observerAddForOnce (zfidentity eventId, const ZFListener &observer, ZFLevel observerLevel=ZFLevelAppNormal)
	see observerNotify
void	observerRemove (zfidentity eventId, const ZFListener &callback)
	see observerNotify
void	observerRemoveAll (zfidentity eventId)
	see observerNotify
void	observerRemoveAll (void)
	see observerNotify
zfbool	observerHasAdd (void)
	true if any observer has been added
zfbool	observerHasAdd (zfidentity eventId)
	true if any observer with eventId has been added
void	observerNotify (zfidentity eventId, ZFObject *param0=zft_zfnull, ZFObject *param1=zft_zfnull)
	notify the observer with eventId
void	observerNotifyWithSender (ZFObject *customSender, zfidentity eventId, ZFObject *param0=zft_zfnull, ZFObject *param1=zft_zfnull)
	see observerNotify
void	observerNotifyReversely (zfidentity eventId, ZFObject *param0=zft_zfnull, ZFObject *param1=zft_zfnull)
	see observerNotify
void	observerNotifyReverselyWithSender (ZFObject *customSender, zfidentity eventId, ZFObject *param0=zft_zfnull, ZFObject *param1=zft_zfnull)
	see observerNotify
ZFObserver &	observerHolder (void)
	access the internal observer holder
void	on (const zfstring &eventName, const ZFListener &observer, ZFLevel observerLevel=ZFLevelAppNormal)
	util to observerAdd
void	on (zfidentity eventId, const ZFListener &observer, ZFLevel observerLevel=ZFLevelAppNormal)
	util to observerAdd
void	onInit (const ZFListener &impl)
	util for script to achieve chained call
void	onDealloc (const ZFListener &impl)
	util for script to achieve chained call
zfbool	objectInstanceStateCheck (ZFObjectInstanceState state)
	object instance's state
zfbool	objectInitRunning (void)
	util method to check whether ZFObjectInstanceStateOnInit or ZFObjectInstanceStateOnInitFinish running
zfbool	objectDeallocRunning (void)
	util method to check whether ZFObjectInstanceStateOnDeallocPrepare or ZFObjectInstanceStateOnDealloc running
virtual zfbool	objectIsInternal (void)
	whether this object is internal object or its class is ZFClass::classIsInternal
virtual zfbool	objectIsInternalPrivate (void)
	whether this object is internal private object or its class is ZFClass::classIsInternalPrivate
Public Member Functions inherited from ZFStyleable
virtual zfanyT< ZFStyleable >	defaultStyle (void)
	return default style of this instance
void	styleableCopyFrom (ZFObject *anotherStyleable)
	copy style from another styleable, see ZFStyleable
virtual zfbool	styleableIsDefaultStyle (void)
	true if this object is defaultStyle
void	styleablePropertyGetAllT (ZFCoreArray< const ZFProperty * > &ret)
	return a list of styleable property, for debug use only
ZFCoreArray< const ZFProperty * >	styleablePropertyGetAll (void)
	return a list of styleable property, for debug use only
void	styleKey (const zfstring &styleKey)
	see ZFStyleSet
const zfstring &	styleKey (void)
	see ZFStyleSet
void	propStyle (const zfstring &propertyName, const zfstring &styleKey)
	see ZFStyleSet
const zfstring &	propStyle (const zfstring &propertyName)
	see ZFStyleSet
Public Member Functions inherited from ZFInterface
virtual ZFObject *	toObject (void)=0
	convert to ZFObject type
Public Member Functions inherited from ZFSerializable
zfbool	serializable (void)
	true if object is currently serializable, see ZFSerializable
zfbool	serializeFromData (const ZFSerializableData &serializableData, zfstring *outErrorHint=zft_zfnull, ZFSerializableData *outErrorPos=zft_zfnull)
	serialize from data, see ZFSerializable
zfbool	serializeToData (ZFSerializableData &serializableData, zfstring *outErrorHint=zft_zfnull, ZFSerializable *refOwner=zft_zfnull)
	serialize to data, see ZFSerializable
zfbool	serializeFromString (const zfchar *src, zfindex srcLen=((zfindex) -1), zfstring *errorHint=zft_zfnull)
	serialize from string, return false by default
zfbool	serializeToString (zfstring &ret, zfstring *errorHint=zft_zfnull)
	see serializeFromString
void	serializablePropertyTypeGetAll (ZFCoreArray< const ZFProperty * > &notSerializableProperty, ZFCoreArray< const ZFProperty * > &serializableProperty, ZFCoreArray< const ZFProperty * > &embededProperty)
	return a list of each type of property, for debug use only
zfstring	serializablePropertyTypeInfo (void)
	return info of serializablePropertyTypeGetAll, for debug use only
void	serializableGetAllSerializablePropertyT (ZFCoreArray< const ZFProperty * > &ret)
	see serializableGetAllSerializableProperty
ZFCoreArray< const ZFProperty * >	serializableGetAllSerializableProperty (void)
	get all serializable property, usually for debug only, see serializableOnCheckPropertyType
void	serializableGetAllSerializableEmbededPropertyT (ZFCoreArray< const ZFProperty * > &ret)
	see serializableGetAllSerializableEmbededProperty
ZFCoreArray< const ZFProperty * >	serializableGetAllSerializableEmbededProperty (void)
	get all serializable embeded property, usually for debug only, see serializableOnCheckPropertyType
virtual void	serializableInfoT (zfstring &ret)
	get info as a serializable
virtual zfstring	serializableInfo (void)
	see serializableInfoT
Public Member Functions inherited from ZFCopyable
zfautoT< ZFCopyable >	copy (void)
	return a copy of this object
void	copyFrom (ZFObject *anotherObj)
	see copy, anotherObj must be same type as this object (by classData), otherwise, do nothing

Static Public Member Functions
static const ZFClass *	ClassData (void)
	get class info
static zfanyT< ZFUIScrollView >	DefaultStyle (void)
static zfidentity	E_ScrollOnDragBegin (void)
	see ZFObject::observerNotify
static zfidentity	E_ScrollOnDrag (void)
	see ZFObject::observerNotify
static zfidentity	E_ScrollOnDragEnd (void)
	see ZFObject::observerNotify
static zfidentity	E_ScrollOnScrollBegin (void)
	see ZFObject::observerNotify
static zfidentity	E_ScrollOnScroll (void)
	see ZFObject::observerNotify
static zfidentity	E_ScrollOnScrollEnd (void)
	see ZFObject::observerNotify
static zfidentity	E_ScrollAreaOnUpdate (void)
	see ZFObject::observerNotify
static zfidentity	E_ScrollContentFrameOnUpdate (void)
	see ZFObject::observerNotify
static zfidentity	E_ScrollAutoScrollOnStart (void)
	see ZFObject::observerNotify
static zfidentity	E_ScrollAutoScrollOnStop (void)
	see ZFObject::observerNotify
static zfidentity	E_ScrollOnScrolledByUser (void)
	see ZFObject::observerNotify
Static Public Member Functions inherited from ZFUIView
static const ZFClass *	ClassData (void)
	get class info
static zfanyT< ZFUIView >	DefaultStyle (void)
static zfidentity	E_ViewTreeInWindowOnUpdate (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewTreeVisibleOnUpdate (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewChildOnUpdate (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewChildOnAdd (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewChildOnRemove (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewOnAddToParent (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewOnRemoveFromParent (void)
	see ZFObject::observerNotify
static zfidentity	E_UIScaleOnUpdate (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewFocusOnUpdate (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewOnEvent (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewLayoutOnLayoutRequest (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewLayoutOnMeasure (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewLayoutOnLayoutPrepare (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewLayoutOnLayout (void)
	see ZFObject::observerNotify
static zfidentity	E_ViewLayoutOnLayoutFinish (void)
	see ZFObject::observerNotify
static zfidentity	E_NativeImplViewMarginOnUpdate (void)
	see ZFObject::observerNotify
static ZFUITransformFlags	transformAvailable ()
	whether transform is supported
Static Public Member Functions inherited from ZFStyle
static const ZFClass *	ClassData (void)
	get class info
Static Public Member Functions inherited from ZFObject
static const ZFClass *	ClassData (void)
	get class info
static zfidentity	E_ObjectBeforeAlloc (void)
	see ZFObject::observerNotify
static zfidentity	E_ObjectAfterAlloc (void)
	see ZFObject::observerNotify
static zfidentity	E_ObjectBeforeDealloc (void)
	see ZFObject::observerNotify
static zfidentity	E_ObjectPropertyValueOnUpdate (void)
	see ZFObject::observerNotify
static zfidentity	E_ObjectPropertyValueOnReset (void)
	see ZFObject::observerNotify
Static Public Member Functions inherited from ZFStyleable
static const ZFClass *	ClassData (void)
	get class info
Static Public Member Functions inherited from ZFInterface
static const ZFClass *	ClassData (void)
	get class info
Static Public Member Functions inherited from ZFSerializable
static const ZFClass *	ClassData (void)
	get class info
Static Public Member Functions inherited from ZFCopyable
static const ZFClass *	ClassData (void)
	get class info

Protected Types
typedef ZFUIView	zfsuper
	class ref to super
typedef ZFUIScrollView	zfself
	class ref to self
Protected Types inherited from ZFUIView
typedef ZFStyle	zfsuper
	class ref to super
typedef ZFUIView	zfself
	class ref to self
Protected Types inherited from ZFStyle
typedef ZFObject	zfsuper
	class ref to super
typedef ZFStyle	zfself
	class ref to self
Protected Types inherited from ZFObject
typedef _ZFP_Obj_Base	zfsuper
	class ref to super
typedef ZFObject	zfself
	class ref to self
Protected Types inherited from ZFStyleable
typedef ZFInterface	zfsuper
	typedef for super (always ZFInterface for an interface type)
typedef ZFStyleable	zfself
	typedef for self
Protected Types inherited from ZFInterface
typedef _ZFP_ObjI_Base	zfsuper
	typedef for super (always ZFInterface for an interface type)
typedef ZFInterface	zfself
	typedef for self
Protected Types inherited from ZFSerializable
typedef ZFInterface	zfsuper
	typedef for super (always ZFInterface for an interface type)
typedef ZFSerializable	zfself
	typedef for self
Protected Types inherited from ZFCopyable
typedef ZFInterface	zfsuper
	typedef for super (always ZFInterface for an interface type)
typedef ZFCopyable	zfself
	typedef for self

Protected Member Functions
virtual void	objectOnInit (void)
	override this to init your object
virtual void	objectOnDealloc (void)
	override this to destroy your object
virtual void	objectOnDeallocPrepare (void)
	called before objectOnDealloc, safe to call virtual functions here
virtual void	objectInfoImplAppend (zfstring &ret)
	see objectInfo
virtual void	implChildOnAdd (ZFUIView *child, zfindex virtualIndex, ZFUIViewChildLayer childLayer, zfindex childLayerIndex)
	called to add or remove view to impl
virtual void	implChildOnRemove (ZFUIView *child, zfindex virtualIndex, ZFUIViewChildLayer childLayer, zfindex childLayerIndex)
	see implChildOnAdd, implChildOnRemoveAllForDealloc
virtual void	implChildOnRemoveAllForDealloc (void)
	called to remove all children during parent dealloc for performance
virtual void	layoutOnLayoutPrepare (const ZFUIRect &bounds)
	see E_ViewLayoutOnLayoutPrepare
virtual void	layoutOnLayout (const ZFUIRect &bounds)
	override ZFUIView to layout scroll view's internal view and content view
virtual void	layoutOnLayoutFinish (const ZFUIRect &bounds)
	see E_ViewLayoutOnLayoutFinish
virtual void	layoutChildOffsetOnUpdate (ZFUIPoint &ret)
	see layoutChildOffset
virtual void	viewEventOnMouseEvent (ZFUIMouseEvent *mouseEvent)
	(ZFTAG_LIMITATION) due to implementations limitation, ZFUIScrollView may or may not have mouse event callbacks
virtual void	viewEventOnWheelEvent (ZFUIWheelEvent *wheelEvent)
	called when wheel event occurred
virtual void	nativeImplViewMarginOnUpdate (void)
	see E_NativeImplViewMarginOnUpdate
virtual void	scrollThumbHorizontalOnInit (void)
	called to init scroll thumb
virtual void	scrollThumbVerticalOnInit (void)
	called to init scroll thumb
void	scrollOverride (zfbool scrollOverride)
	for subclass to supply advanced scroll controll
zfbool	scrollOverride (void)
	see scrollOverride
virtual void	scrollOnDragBegin (void)
	see E_ScrollOnDragBegin
virtual void	scrollOnDrag (void)
	see E_ScrollOnDrag
virtual void	scrollOnDragEnd (void)
	see E_ScrollOnDragEnd
virtual void	scrollOnScrollBegin (void)
	see E_ScrollOnScrollBegin
virtual void	scrollOnScroll (void)
	see E_ScrollOnScroll
virtual void	scrollOnScrollEnd (void)
	see E_ScrollOnScrollEnd
virtual void	scrollAreaOnUpdate (void)
	see E_ScrollAreaOnUpdate
virtual void	scrollContentFrameOnUpdate (void)
	see E_ScrollContentFrameOnUpdate
virtual void	scrollAutoScrollOnStart (void)
	see E_ScrollAutoScrollOnStart
virtual void	scrollAutoScrollOnStop (void)
	see E_ScrollAutoScrollOnStop
virtual void	scrollOnScrolledByUser (void)
	see E_ScrollOnScrolledByUser
Protected Member Functions inherited from ZFUIView
virtual zfbool	serializableOnSerializeFromData (const ZFSerializableData &serializableData, zfstring *outErrorHint=zft_zfnull, ZFSerializableData *outErrorPos=zft_zfnull)
	for serializable data that has "category" attribute, ZFSerializable would ignore it and leave it to subclass to resolve, see ZFSerializable
virtual zfbool	serializableOnSerializeToData (ZFSerializableData &serializableData, zfstring *outErrorHint=zft_zfnull, ZFSerializable *refOwner=zft_zfnull)
	corresponding to serializableOnSerializeFromData, return whether the task is success, see ZFSerializable
virtual zfbool	serializableOnCheckNeedSerializeChildren (void)
	whether we should serialize all children
virtual void	nativeImplView (void *nativeImplView, ZFUIViewNativeImplViewDeleteCallback nativeImplViewDeleteCallback, zfbool nativeImplViewRequireVirtualIndex)
	see nativeImplView
virtual void	nativeImplViewMarginImplUpdate (ZFUIMargin &nativeImplViewMargin)
	see nativeImplViewMargin, subclass must call super and "append" to existing margin
virtual void	nativeImplViewOnLayout (ZFUIRect &ret, const ZFUIRect &bounds, const ZFUIMargin &nativeImplViewMargin)
	called to layout nativeImplView
virtual void	focusOnUpdate (void)
	see E_ViewFocusOnUpdate
virtual void	UIScaleOnUpdate (void)
	see UIScale, ensured called only when scale value actually changed
virtual const ZFClass *	layoutParamClass (void)
	see layoutParamCreate
virtual void	layoutParamOnUpdate (ZFUILayoutParam *layoutParam)
	see layoutParamCreate
virtual void	layoutOnLayoutRequest (void)
	called during layoutRequest
virtual void	layoutOnMeasure (ZFUISize &ret, const ZFUISize &sizeHint, const ZFUISizeParam &sizeParam)
	called by layoutMeasure to decide the view's size
virtual void	layoutOnMeasureFinish (ZFUISize &measuredSize, const ZFUISize &sizeHint, const ZFUISizeParam &sizeParam)
	see E_ViewLayoutOnMeasure
virtual void	viewTreeInWindowOnUpdate (void)
	see E_ViewTreeInWindowOnUpdate
virtual void	viewTreeVisibleOnUpdate (void)
	see E_ViewTreeVisibleOnUpdate
virtual void	viewChildOnUpdate (void)
	see E_ViewChildOnUpdate
virtual void	viewChildOnAdd (ZFUIView *child, ZFUIViewChildLayer childLayer)
	see E_ViewChildOnAdd
virtual void	viewChildOnRemove (ZFUIView *child, ZFUIViewChildLayer childLayer)
	see E_ViewChildOnRemove
virtual void	viewOnAddToParent (ZFUIView *parent)
	see E_ViewOnAddToParent
virtual void	viewOnRemoveFromParent (ZFUIView *parent)
	see E_ViewOnRemoveFromParent
virtual zfbool	internalViewShouldLayout (ZFUIView *internalView)
	called to check whether the internal view should be layouted using default layout logic, return true by default
virtual void	internalViewOnLayout (const ZFUIRect &bounds)
	see internalBgViewAdd
virtual void	viewEventOnEvent (ZFUIEvent *event)
	notified when a ZFUIEvent occurred
virtual void	viewEventOnKeyEvent (ZFUIKeyEvent *keyEvent)
	called when key occurred
virtual void	viewEventOnKeyEventResolveFocus (ZFUIKeyEvent *keyEvent)
	called by viewEventOnKeyEvent to resolve focus move key event
virtual void	styleableOnCopyFrom (ZFObject *anotherStyleable)
	for a view, copy style would also copy all of it's children
virtual void	observerOnAdd (zfidentity eventId)
	called when add first observer
virtual void	observerOnRemove (zfidentity eventId)
	called when remove last observer
Protected Member Functions inherited from ZFStyle
virtual void	copyableOnCopyFrom (ZFObject *anotherObj)
	called by copy to copy contents from anotherObj
Protected Member Functions inherited from ZFObject
virtual void	objectInfoImpl (zfstring &ret)
	see objectInfo
virtual zfidentity	objectHashImpl (void)
	see objectHash
virtual ZFCompareResult	objectCompareImpl (ZFObject *anotherObj)
	see objectCompare
virtual ZFCompareResult	objectCompareValueImpl (ZFObject *anotherObj)
	see objectCompareValue
virtual void	observerOnEvent (const ZFArgs &zfargs)
	notified when observerNotify
virtual void	objectOnInitFinish (void)
	called after objectOnInit, safe to call virtual functions here
virtual void	objectOnRetain (void)
	called to retain object
virtual void	objectOnRelease (void)
	called to release object
virtual void	objectPropertyValueOnUpdate (const ZFProperty *property, const void *oldValue)
	see E_ObjectPropertyValueOnUpdate
virtual void	objectPropertyValueOnReset (const ZFProperty *property)
	see E_ObjectPropertyValueOnReset
Protected Member Functions inherited from ZFStyleable
virtual void	styleableOnCopyPropertyFrom (ZFObject *anotherStyleable, const ZFProperty *property)
	copy property with styleable logic
Protected Member Functions inherited from ZFSerializable
virtual ZFSerializablePropertyType	serializableOnCheckPropertyType (const ZFProperty *property)
	check the property type that serializable should do what while serializing
virtual zfbool	serializableOnCheck (void)
	see serializable
virtual zfbool	serializableOnSerializePropertyFromData (const ZFSerializableData &propertyData, const ZFProperty *property, zfstring *outErrorHint=zft_zfnull, ZFSerializableData *outErrorPos=zft_zfnull)
	see serializableOnCheckPropertyType, usually you have no need to override this method, see ZFSerializable
virtual zfbool	serializableOnSerializePropertyToData (ZFSerializableData &ownerData, const ZFProperty *property, zfstring *outErrorHint=zft_zfnull, ZFSerializable *refOwner=zft_zfnull)
	see serializableOnCheckPropertyType, usually you have no need to override this method, see ZFSerializable
virtual zfbool	serializableOnSerializeEmbededPropertyFromData (const ZFSerializableData &propertyData, const ZFProperty *property, zfstring *outErrorHint=zft_zfnull, ZFSerializableData *outErrorPos=zft_zfnull)
	see serializableOnCheckPropertyType, usually you have no need to override this method, see ZFSerializable
virtual zfbool	serializableOnSerializeEmbededPropertyToData (ZFSerializableData &ownerData, const ZFProperty *property, ZFSerializable *refOwner, zfstring *outErrorHint=zft_zfnull)
	see serializableOnCheckPropertyType, usually you have no need to override this method, see ZFSerializable
virtual zfbool	serializableOnSerializeFromString (const zfchar *src, zfindex srcLen=((zfindex) -1), zfstring *errorHint=zft_zfnull)
	see serializeFromString
virtual zfbool	serializableOnSerializeToString (zfstring &ret, zfstring *errorHint=zft_zfnull)
	see serializeFromString

Detailed Description

native scroll view

note that background view of scroll view and all other views behind scroll view are ensured won't receive mouse event

Member Function Documentation

classData()

virtual const ZFClass * ZFUIScrollView::classData ( void )

inlinevirtual

get instance's class info

Reimplemented from ZFUIView.

Reimplemented in ZFUIListView, ZFUIOnScreenKeyboardAutoFitLayout, and ZFUIScrollLayout.

DefaultStyle()

static zfanyT< ZFUIScrollView > ZFUIScrollView::DefaultStyle ( void )

static

default style for ZFUIScrollView

E_ScrollOnDragBegin()

static zfidentity ZFUIScrollView::E_ScrollOnDragBegin ( void )

static

see ZFObject::observerNotify

called when drag begin

E_ScrollOnDrag()

static zfidentity ZFUIScrollView::E_ScrollOnDrag ( void )

static

see ZFObject::observerNotify

called when drag

E_ScrollOnDragEnd()

static zfidentity ZFUIScrollView::E_ScrollOnDragEnd ( void )

static

see ZFObject::observerNotify

called when drag end

E_ScrollOnScrollBegin()

static zfidentity ZFUIScrollView::E_ScrollOnScrollBegin ( void )

static

see ZFObject::observerNotify

called when scroll begin

E_ScrollOnScroll()

static zfidentity ZFUIScrollView::E_ScrollOnScroll ( void )

static

see ZFObject::observerNotify

called when scroll

E_ScrollOnScrollEnd()

static zfidentity ZFUIScrollView::E_ScrollOnScrollEnd ( void )

static

see ZFObject::observerNotify

called when scroll end

E_ScrollAreaOnUpdate()

static zfidentity ZFUIScrollView::E_ScrollAreaOnUpdate ( void )

static

see ZFObject::observerNotify

called when scrollArea changed

E_ScrollContentFrameOnUpdate()

static zfidentity ZFUIScrollView::E_ScrollContentFrameOnUpdate ( void )

static

see ZFObject::observerNotify

called when scrollContentFrame changed

E_ScrollAutoScrollOnStart()

static zfidentity ZFUIScrollView::E_ScrollAutoScrollOnStart ( void )

static

see ZFObject::observerNotify

called when auto scroll started

E_ScrollAutoScrollOnStop()

static zfidentity ZFUIScrollView::E_ScrollAutoScrollOnStop ( void )

static

see ZFObject::observerNotify

called when auto scroll stopped

E_ScrollOnScrolledByUser()

static zfidentity ZFUIScrollView::E_ScrollOnScrolledByUser ( void )

static

see ZFObject::observerNotify

called when scrolled by user, activated if any of these methods called manually or event occurred:

• scrollByPoint
• scrollBySpeed
• scrollContentFrame or scrollContentFrameAnimated
• autoScrollStartX series
• drag begin

"called manually" means not overrided by scrollOverride

scrollAlignToPageHorizontal()

virtual zfbool & ZFUIScrollView::scrollAlignToPageHorizontal ( )

inlinevirtual

whether align to page when scroll, false by default

if true, during scrolling, scroll view would try to stop at integer multiples of scroll view's size, excluding scroll thumb's size
if align to page, scrollAlignToAxis would be activated no matter what value of it

scrollAlignToPageVertical()

virtual zfbool & ZFUIScrollView::scrollAlignToPageVertical ( )

inlinevirtual

whether align to page when scroll, false by default

if true, during scrolling, scroll view would try to stop at integer multiples of scroll view's size, excluding scroll thumb's size
if align to page, scrollAlignToAxis would be activated no matter what value of it

scrollContentFrame()

virtual ZFUIRect & ZFUIScrollView::scrollContentFrame ( )

inlinevirtual

scroll view's content frame

change this value would have no scroll animation, and any of previous scroll animation would be stopped
use ZFUIScrollView::scrollContentFrameAnimated if you want to start scroll animation, or ZFUIScrollView::scrollContentFrameUpdate if you want to change frame and keep previous scroll animation

Note

the rect's 0 point starts from nativeImplViewMargin + scrollAreaMargin, instead of the view's frame

objectOnInit()

virtual void ZFUIScrollView::objectOnInit ( void )

protectedvirtual

override this to init your object

subclass must call superclass's objectOnInit before any other code if override
you may also declare objectOnInit with params like this:

zfclass Parent : ... {
    ...
protected:
    virtual void objectOnInit(void) {...};
};
zfclass Child : Parent {
protected:
    // override all parent's objectOnInit is also required,
    // because of function hiding of C++
    zfoverride
    virtual void objectOnInit(void) {
        zfsuper::objectOnInit();
    }
    // custom init entry
    virtual void objectOnInit(Params...) {
        // your extra init steps
        ...
    }
};

Warning

objectOnInit and objectOnDealloc is called as a virtual function, take good care of other virtual function call, use zfself::func() instead of this->func() if necessary, or use objectOnInitFinish/objectOnDeallocPrepare, or declare your own constructor with ZFOBJECT_DECLARE_WITH_CUSTOM_CTOR

Note

(ZFTAG_LIMITATION) due to limitations of C++, if your parent type declared objectOnInit with different params, and your child type want to override part of those objectOnInit, then your child type must also override all objectOnInit that parent declared, otherwise, some may be hidden

for objects that designed not to be allocated by user, you should use ZFOBJECT_PRIVATE_ALLOC, typically usage:

zfclass MyObject : zfextend ZFObject {
    ZFOBJECT_DECLARE(MyObject, ZFObject)
    ZFOBJECT_PRIVATE_ALLOC("should be created by MyObject::instanceForXxx only")

public:
    static zfauto instanceForXxx(xxx) {
        // can only be allocated by reflection
        return zfself::ClassData()->newInstance();
    }
};
static void func(void) {
    // MyObject *obj = zfAlloc(MyObject); // would compile error
    zfauto obj = MyObject::instanceForXxx(xxx); // OK
}

Reimplemented from ZFUIView.

Reimplemented in ZFUIListView, and ZFUIOnScreenKeyboardAutoFitLayout.

objectOnDealloc()

virtual void ZFUIScrollView::objectOnDealloc ( void )

protectedvirtual

override this to destroy your object

subclass must call superclass's objectOnDealloc after any other code if override
see objectOnInit for more info

Reimplemented from ZFUIView.

Reimplemented in ZFUIListView, and ZFUIOnScreenKeyboardAutoFitLayout.

objectOnDeallocPrepare()

virtual void ZFUIScrollView::objectOnDeallocPrepare ( void )

protectedvirtual

called before objectOnDealloc, safe to call virtual functions here

usually used to cleanup resources attached to this object other than self's internal resources

Note

it's ensured safe to retain the object while deallocating, but it's not ensured objectOnDeallocPrepare would only called once for each instance

Reimplemented from ZFUIView.

Reimplemented in ZFUIListView.

objectInfoImplAppend()

virtual void ZFUIScrollView::objectInfoImplAppend ( zfstring & ret )

protectedvirtual

see objectInfo

Reimplemented from ZFUIView.

implChildOnAdd()

virtual void ZFUIScrollView::implChildOnAdd ( ZFUIView * child, zfindex virtualIndex, ZFUIViewChildLayer childLayer, zfindex childLayerIndex )

protectedvirtual

called to add or remove view to impl

subclass may override this method to add child to other container
to implement this, you must implement all these methods:

• implChildOnAdd : called to add to impl
• implChildOnRemove : called to remove from impl
• implChildOnRemoveAllForDealloc : called to remove from impl during parent dealloc

Reimplemented from ZFUIView.

implChildOnRemove()

virtual void ZFUIScrollView::implChildOnRemove ( ZFUIView * child, zfindex virtualIndex, ZFUIViewChildLayer childLayer, zfindex childLayerIndex )

protectedvirtual

see implChildOnAdd, implChildOnRemoveAllForDealloc

Reimplemented from ZFUIView.

implChildOnRemoveAllForDealloc()

virtual void ZFUIScrollView::implChildOnRemoveAllForDealloc ( void )

protectedvirtual

called to remove all children during parent dealloc for performance

for normal children management, each child would be removed one by one and fire child change event when childRemoveAll, which is not necessary during parent dealloc (which may cause performance issue), so we use this method to remove all children directly during parent dealloc to improve performance

Reimplemented from ZFUIView.

layoutOnLayoutPrepare()

virtual void ZFUIScrollView::layoutOnLayoutPrepare ( const ZFUIRect & bounds )

protectedvirtual

see E_ViewLayoutOnLayoutPrepare

Reimplemented from ZFUIView.

Reimplemented in ZFUIListView, ZFUIOnScreenKeyboardAutoFitLayout, and ZFUIScrollLayout.

layoutOnLayout()

virtual void ZFUIScrollView::layoutOnLayout ( const ZFUIRect & bounds )

protectedvirtual

override ZFUIView to layout scroll view's internal view and content view

usually you should not override this method, if necessary, you must call super

Reimplemented from ZFUIView.

Reimplemented in ZFUIListView.

layoutOnLayoutFinish()

virtual void ZFUIScrollView::layoutOnLayoutFinish ( const ZFUIRect & bounds )

protectedvirtual

see E_ViewLayoutOnLayoutFinish

Reimplemented from ZFUIView.

layoutChildOffsetOnUpdate()

virtual void ZFUIScrollView::layoutChildOffsetOnUpdate ( ZFUIPoint & ret )

inlineprotectedvirtual

see layoutChildOffset

Reimplemented from ZFUIView.

viewEventOnMouseEvent()

virtual void ZFUIScrollView::viewEventOnMouseEvent ( ZFUIMouseEvent * mouseEvent )

protectedvirtual

(ZFTAG_LIMITATION) due to implementations limitation, ZFUIScrollView may or may not have mouse event callbacks

Reimplemented from ZFUIView.

viewEventOnWheelEvent()

virtual void ZFUIScrollView::viewEventOnWheelEvent ( ZFUIWheelEvent * wheelEvent )

protectedvirtual

called when wheel event occurred

due to some limitations, we doesn't support intercept wheel event, event dispatch logic depends on implementation, you may use native view to achieve if necessary

the event would be dispatched from child to parent, util it's resolved

Reimplemented from ZFUIView.

nativeImplViewMarginOnUpdate()

virtual void ZFUIScrollView::nativeImplViewMarginOnUpdate ( void )

protectedvirtual

see E_NativeImplViewMarginOnUpdate

Reimplemented from ZFUIView.

scrollChildToVisible()

virtual void ZFUIScrollView::scrollChildToVisible ( ZFUIView * child, const ZFUIMargin & margin = (ZFUIMarginCreate(ZFUIGlobalStyle::DefaultStyle() ->itemMargin())), zfbool scrollWithAni = (_ZFT_t_zftrue) )

virtual

scroll child to proper position so that it's visible to user

it's your responsibility to ensure th child is indeed this view's child

scrollThumbHorizontalClass()

virtual void ZFUIScrollView::scrollThumbHorizontalClass ( const ZFClass * cls )

virtual

change current scroll thumb, null to disable

by default, ZFUIScrollThumbHorizontalClass and ZFUIScrollThumbHorizontalClass would be used

scrollThumbHorizontalOnInit()

virtual void ZFUIScrollView::scrollThumbHorizontalOnInit ( void )

protectedvirtual

called to init scroll thumb

Reimplemented in ZFUIOnScreenKeyboardAutoFitLayout.

scrollThumbVerticalOnInit()

virtual void ZFUIScrollView::scrollThumbVerticalOnInit ( void )

protectedvirtual

called to init scroll thumb

Reimplemented in ZFUIOnScreenKeyboardAutoFitLayout.

scrollerClass()

virtual const ZFClass * ZFUIScrollView::scrollerClass ( )

virtual

class for internal scroller, must be type of ZFUIScroller, ZFUIScrollerClass by default

scroller can only be changed by ZFUIScrollerClass, and only affect newly created scroll view

scrollContentOffsetLeft()

virtual zffloat ZFUIScrollView::scrollContentOffsetLeft ( )

virtual

util method to get offset of the scroll content

positive if normal scroll, negative if bouncing

scrollContentFrameAnimated()

virtual void ZFUIScrollView::scrollContentFrameAnimated ( const ZFUIRect & scrollContentFrame )

virtual

animated change scroll content frame

this is a util method to combine scrollContentFrameUpdate and scrollByPoint

autoScrollStartX()

virtual void ZFUIScrollView::autoScrollStartX ( zffloat speedInPixelsPerSecond )

virtual

start an auto scroll with specified speed

auto scroll would be stopped if:

• autoScrollStopX/autoScrollStopY is called
• drag event occurred
• scrollByPoint/scrollContentFrameAnimated occurred
• scroll reached content's edge

scrollOverride()

void ZFUIScrollView::scrollOverride ( zfbool scrollOverride )

protected

for subclass to supply advanced scroll controll

this method is used to ignore some internal scroll actions from being recognized as user's manual scroll action, see E_ScrollOnScrolledByUser
this method can be called more than one time, but must be paired

scrollOnScrollEnd()

virtual void ZFUIScrollView::scrollOnScrollEnd ( void )

inlineprotectedvirtual

see E_ScrollOnScrollEnd

Reimplemented in ZFUIListView.

scrollAreaOnUpdate()

virtual void ZFUIScrollView::scrollAreaOnUpdate ( void )

inlineprotectedvirtual

see E_ScrollAreaOnUpdate

Reimplemented in ZFUIListView.

scrollContentFrameOnUpdate()

virtual void ZFUIScrollView::scrollContentFrameOnUpdate ( void )

inlineprotectedvirtual

see E_ScrollContentFrameOnUpdate

Reimplemented in ZFUIListView.

scrollOnScrolledByUser()

virtual void ZFUIScrollView::scrollOnScrolledByUser ( void )

inlineprotectedvirtual

see E_ScrollOnScrolledByUser

Reimplemented in ZFUIListView.

---

The documentation for this class was generated from the following file:

• ZFUIScrollView.h
