abstract view that can draw user content More...

#include <ZFUIDraw.h>

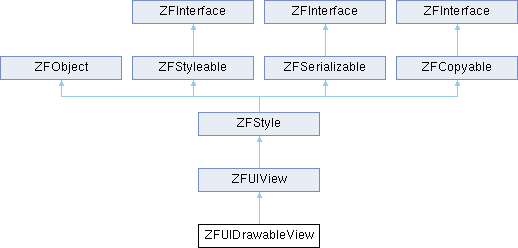

Inheritance diagram for ZFUIDrawableView:

Public Types
enum

Public Types inherited from ZFUIView
enum

Public Types inherited from ZFStyle
enum

Public Types inherited from ZFObject
enum

Public Member Functions
virtual const ZFClass *	classData (void)
	get instance's class info

virtual void	drawRequest ()
	mark the view needs to redraw, see ZFUIDrawableView

virtual zfbool const &	drawing ()
	true if during onDraw

Public Member Functions inherited from ZFUIView
virtual void	serializableRefLayoutParam (ZFUILayoutParam *serializableRefLayoutParam)
	store ref layout param for this view for reducing serialization output size

virtual ZFUILayoutParam *	serializableRefLayoutParam (void)
	see serializableRefLayoutParam

virtual zfstring &	viewId ()
	used to identify a view, empty by default

virtual void	viewId (zfstring const &propertyValue)
	see viewId

virtual zfbool &	visible ()
	visible or not, zftrue by default

virtual void	visible (zfbool const &propertyValue)
	see visible

virtual zfbool	viewTreeInWindow ()
	true if added to ZFUISysWindow

virtual zfbool	viewTreeVisible ()
	true only if added to ZFUISysWindow and all of parents are visible

virtual zffloat &	alpha ()
	view's alpha, 1 by default

virtual void	alpha (zffloat const &propertyValue)
	see alpha

virtual zfbool &	viewUIEnable ()
	whether the view should receive user interaction (doesn't affect children, see viewUIEnableTree)

virtual void	viewUIEnable (zfbool const &propertyValue)
	see viewUIEnable

virtual zfbool &	viewUIEnableTree ()
	whether the view as well as all its children should receive user interaction, see viewUIEnable

virtual void	viewUIEnableTree (zfbool const &propertyValue)
	see viewUIEnableTree

virtual zfbool	viewUIEnableFixed ()
	true if viewUIEnable and all of parents are viewUIEnableTree

virtual zfbool	viewUIEnableTreeFixed ()
	true if viewUIEnableTree and all of parents are viewUIEnableTree

virtual zfbool &	mouseHoverEnable ()
	whether enable mouse hover event, see ZFUIView::viewEventOnMouseEvent, false by default

virtual void	mouseHoverEnable (zfbool const &propertyValue)
	see mouseHoverEnable

virtual zfbool &	focusable ()
	whether the view can be focused, false by default

virtual void	focusable (zfbool const &propertyValue)
	see focusable

virtual zfbool &	focusObtainWhenClick ()
	whether try to obtain focus when clicked down, true by default

virtual void	focusObtainWhenClick (zfbool const &propertyValue)
	see focusObtainWhenClick

virtual ZFUIRect const &	viewFrame ()
	the view's frame

virtual void	viewFrame (ZFUIRect const &viewFrame)
	see viewFrame

virtual const ZFUIRect &	viewFramePrev ()
	previous viewFrame

virtual zfbool	viewFrameOverrided ()
	true if viewFrame changed by user, use viewFrameReset to reset

virtual void	viewFrameReset ()
	see viewFrame

virtual zffloat	x ()
	see viewFrame

virtual void	x (zffloat const &propertyValue)
	see viewFrame

virtual zffloat	y ()
	see viewFrame

virtual void	y (zffloat const &propertyValue)
	see viewFrame

virtual zffloat	width ()
	see viewFrame

virtual void	width (zffloat const &propertyValue)
	see viewFrame

virtual zffloat	height ()
	see viewFrame

virtual void	height (zffloat const &propertyValue)
	see viewFrame

virtual zffloat	centerX ()
	see viewFrame

virtual void	centerX (zffloat const &propertyValue)
	see viewFrame

virtual zffloat	centerY ()
	see viewFrame

virtual void	centerY (zffloat const &propertyValue)
	see viewFrame

virtual void	viewSizeFixed (const ZFUISize &size)
	util method to set fixed size, by setting both of viewSizeMin and viewSizeMax

virtual void	viewSizeFixed (zffloat width, zffloat height)
	see viewSizeFixed

virtual ZFUISize &	viewSizeMin ()
	min size, ZFUISizeZero by default

virtual void	viewSizeMin (ZFUISize const &propertyValue)
	see viewSizeMin

virtual ZFUISize &	viewSizeMax ()
	max size, negative value means not set, ZFUISizeInvalid by default

virtual void	viewSizeMax (ZFUISize const &propertyValue)
	see viewSizeMax

virtual ZFUIColor &	bgColor ()
	background color, ZFUIColorZero by default

virtual void	bgColor (ZFUIColor const &propertyValue)
	see bgColor

virtual zffloat &	translateX ()
	see transformAvailable

virtual void	translateX (zffloat const &propertyValue)
	see translateX

virtual zffloat &	translateY ()
	see transformAvailable

virtual void	translateY (zffloat const &propertyValue)
	see translateY

virtual zffloat &	translateZ ()
	see transformAvailable

virtual void	translateZ (zffloat const &propertyValue)
	see translateZ

virtual zffloat &	scaleX ()
	see transformAvailable

virtual void	scaleX (zffloat const &propertyValue)
	see scaleX

virtual zffloat &	scaleY ()
	see transformAvailable

virtual void	scaleY (zffloat const &propertyValue)
	see scaleY

virtual zffloat &	scaleZ ()
	see transformAvailable

virtual void	scaleZ (zffloat const &propertyValue)
	see scaleZ

virtual zffloat &	rotateX ()
	see transformAvailable

virtual void	rotateX (zffloat const &propertyValue)
	see rotateX

virtual zffloat &	rotateY ()
	see transformAvailable

virtual void	rotateY (zffloat const &propertyValue)
	see rotateY

virtual zffloat &	rotateZ ()
	see transformAvailable

virtual void	rotateZ (zffloat const &propertyValue)
	see rotateZ

virtual void	bind (ZFObject *owner, const zfstring &propertyName)
	util method to bind this view to owner's property, and auto setup viewId if not set

virtual void	bindEvent (const zfstring &eventName, ZFObject *owner, const zfstring &methodName)
	util method to bind this view's event to owner's method

virtual void	bindEvent (zfidentity eventId, ZFObject *owner, const zfstring &methodName)
	util method to bind this view's event to owner's method, see bindEvent

virtual void *	nativeImplView ()
	native implementation view

virtual zfbool	nativeImplViewRequireVirtualIndex ()
	whether the nativeImplView cost one virtualIndex

virtual const ZFUIMargin &	nativeImplViewMargin ()
	inner margin between ZFUIView and the internal nativeImplView

virtual void	nativeImplViewMarginUpdate ()
	see nativeImplViewMargin, layoutRequest if the final value actually changed

virtual const ZFUIRect &	nativeImplViewFrame ()
	frame of nativeImplView

virtual ZFUIMargin &	nativeImplViewMarginCustom ()
	see nativeImplViewMargin, ZFUIMarginZero by default

virtual void	nativeImplViewMarginCustom (ZFUIMargin const &propertyValue)
	see nativeImplViewMarginCustom

virtual void *	nativeView ()
	native container view

virtual zfbool	focused ()
	whether the view currently focused

virtual void	focusRequest (zfbool focus)
	request to obtain or resign focus, result can be checked by focused

virtual zfanyT< ZFUIView >	focusFind ()
	recursively to find focused child, take care of performance

virtual zfanyT< ZFUIView >	parent ()
	parent view or null if none

virtual void	removeFromParent ()
	remove this view from parent or do nothing if no parent

virtual zffloat &	UIScale ()
	UI scale for view tree.

virtual void	UIScale (zffloat const &propertyValue)
	see UIScale

virtual zffloat	UIScaleInherited ()
	see UIScale

virtual zffloat	UIScaleForImpl ()
	see UIScale

virtual zffloat	UIScaleForPixel ()
	see UIScale

virtual zffloat	UIScaleFixed ()
	see UIScale

virtual zfautoT< ZFUILayoutParam >	layoutParamCreate ()
	create layout param, calling layoutParamClass to create instance and layoutParamOnUpdate to update

virtual void	layoutParam (ZFUILayoutParam *layoutParam)
	manually set layout param

virtual zfanyT< ZFUILayoutParam >	layoutParam ()
	get self's layout param, valid only while the view has parent

virtual void	layoutRequest ()
	set need layout

virtual zfbool	layoutRequested ()
	true if need layout

virtual zfbool	layouting ()
	true if currently being layouted

virtual const ZFUISize &	layoutMeasure (const ZFUISize &sizeHint, const ZFUISizeParam &sizeParam)
	measure the view

virtual const ZFUISize &	layoutMeasuredSize ()
	get measured size, invalid if not measured

virtual void	layoutIfNeed ()
	force to layout if need

virtual ZFUIPoint	layoutChildOffset ()
	get child offset to this view

virtual zfanyT< ZFUIView >	childFindById (const zfstring &viewId, zfbool findRecursively=(_ZFT_t_zftrue), zfbool includeInternalViews=(_ZFT_t_zffalse))
	find view by viewId, return the view or null if not found

virtual zfanyT< ZFUIView >	childFindByClass (const ZFClass *cls, zfbool findRecursively=(_ZFT_t_zftrue), zfbool includeInternalViews=(_ZFT_t_zffalse))
	find view by class, return the view or null if not found

virtual zfauto	childForEach (const ZFListener &impl, zfbool findRecursively=(_ZFT_t_zftrue), zfbool includeInternalViews=(_ZFT_t_zffalse))
	call custom impl for each child

virtual zfanyT< ZFUILayoutParam >	childWithParam (ZFUIView view, ZFUILayoutParam layoutParam, zfindex atIndex=(((zfindex) -1)))
	add view with layout param, param must be created by layoutParamCreate

zfanyT< ZFUILayoutParam >	child (const zfany &view, zfindex atIndex=((zfindex) -1))
	add child and return child's layoutParam, see childWithParam

virtual void	childRemove (ZFUIView *view)
	remove view or do nothing if view isn't added to this view

virtual void	childRemoveAt (zfindex index)
	remove view at index or assert fail if index out of range

virtual void	childRemoveAll ()
	remove all child view

virtual void	childMove (zfindex fromIndex, zfindex toIndexOrIndexMax)
	move view, make toIndexOrIndexMax as zfindexMax() to move to top most, and 0 to bottom most, do nothing if index invalid or have no change

virtual void	childMove (ZFUIView *child, zfindex toIndexOrIndexMax)
	see childMove

virtual void	childReplaceAt (zfindex atIndex, ZFUIView *toReplace)
	replace child at index, assert fail if index out of range or view to replace already has parent

virtual zfindex	childCount ()
	get child view count

virtual zfanyT< ZFUIView >	childAt (zfindex index)
	get child view at index or assert fail if out of range

virtual zfindex	childFind (ZFUIView *view)
	return index of view or zfindexMax() if not child of this view

virtual ZFCoreArray< zfautoT< ZFUIView > >	childArray ()
	get the child view array

virtual ZFUIViewChildLayer	viewLayer ()
	this view belongs to which layer of parent, valid only if parent is not null

virtual ZFCoreArray< zfautoT< ZFUIView > >	childRawArray ()
	return all children including internal views, see childArray

virtual zfanyT< ZFUILayoutParam >	internalImplViewAdd (ZFUIView view, ZFUILayoutParam layoutParam=(zft_zfnull), zfbool addAsTopMost=(_ZFT_t_zftrue))
	see internalBgViewAdd

virtual void	internalImplViewRemove (ZFUIView *view)
	see internalBgViewAdd

virtual ZFCoreArray< zfautoT< ZFUIView > >	internalImplViewArray ()
	see internalBgViewAdd

virtual zfanyT< ZFUILayoutParam >	internalBgViewAdd (ZFUIView view, ZFUILayoutParam layoutParam=(zft_zfnull), zfbool addAsTopMost=(_ZFT_t_zftrue))
	internal view which is independent from normal view

virtual void	internalBgViewRemove (ZFUIView *view)
	see internalBgViewAdd

virtual ZFCoreArray< zfautoT< ZFUIView > >	internalBgViewArray ()
	usually for debug use only, try to avoid use this in your app for other purpose

virtual zfanyT< ZFUILayoutParam >	internalFgViewAdd (ZFUIView view, ZFUILayoutParam layoutParam=(zft_zfnull), zfbool addAsTopMost=(_ZFT_t_zftrue))
	see internalBgViewAdd

virtual void	internalFgViewRemove (ZFUIView *view)
	see internalBgViewAdd

virtual ZFCoreArray< zfautoT< ZFUIView > >	internalFgViewArray ()
	see internalBgViewAdd

virtual void	internalViewAutoSerializeTagAdd (const zfstring &tag)
	used to apply auto serialize logic to internal views

virtual void	internalViewAutoSerializeTagRemove (const zfstring &tag)
	see internalViewAutoSerializeTagAdd

virtual void	internalViewAutoSerializeTagRemoveAll ()
	see internalViewAutoSerializeTagAdd

virtual void	internalViewAutoSerializeTagGetAllT (ZFCoreArray< zfstring > &ret)
	see internalViewAutoSerializeTagAdd

virtual ZFCoreArray< zfstring >	internalViewAutoSerializeTagGetAll ()
	see internalViewAutoSerializeTagAdd

virtual void	viewEventSend (ZFUIEvent *event)
	directly send a event, use with caution

Public Member Functions inherited from ZFObject
zfindex	objectRetainCount (void)
	return the object's retain count

void	objectInfoOfInstanceT (zfstring &ret)
	see objectInfoOfInstance

zfstring	objectInfoOfInstance (void)
	return a short string describe the object instance

void	objectInfoT (zfstring &ret)
	see objectInfo

zfstring	objectInfo (void)
	return object info

zfidentity	objectHash (void)
	get hash of this object

ZFCompareResult	objectCompare (ZFObject *anotherObj)
	compare with anotherObj

ZFCompareResult	objectCompareValue (ZFObject *anotherObj)
	explicitly compare object by logical value, see objectCompare

virtual zfauto	invoke (const zfstring &methodName)
	util method to perform ZFDI_invoke, do nothing if fail

virtual zfauto	invoke (const zfstring &methodName, ZFObject param0, ZFObject param1=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param2=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param3=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param4=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param5=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param6=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param7=((ZFObject *const &) _ZFP_ZFMP_DEF))
	util method to perform ZFDI_invoke, do nothing if fail

virtual zfbool	invokeT (zfauto &ret, zfstring errorHint, const zfstring &methodName, ZFObject param0=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param1=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param2=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param3=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param4=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param5=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param6=((ZFObject const &) _ZFP_ZFMP_DEF), ZFObject param7=((ZFObject *const &) _ZFP_ZFMP_DEF))
	util method to perform ZFDI_invoke, do nothing if fail

virtual zfauto	invokeDetail (const zfstring &methodName, const ZFCoreArray< zfauto > &params, zfbool success=zft_zfnull, zfstring errorHint=zft_zfnull)
	util method to perform ZFDI_invoke, do nothing if fail

zfbool	objectTagExist (void)
	see objectTag, true if this object has tag, and tag can be checked by objectTagGetAllKeyValue

void	objectTag (const zfstring &key, ZFObject *tag)
	used to hold a object for app's use, auto retained

zfany	objectTag (const zfstring &key)
	see objectTag

void	objectTagGetAllKeyValue (ZFCoreArray< zfstring > &allKey, ZFCoreArray< zfauto > &allValue)
	get all key value

void	objectTagRemove (const zfstring &key)
	remove tag, same as set tag to null

zfauto	objectTagRemoveAndGet (const zfstring &key)
	remove tag, return removed tag or null if not exist

void	objectTagRemoveAll (void)
	remove all tag

void	observerAdd (zfidentity eventId, const ZFListener &observer, ZFLevel observerLevel=ZFLevelAppNormal)
	see observerNotify

void	observerAddForOnce (zfidentity eventId, const ZFListener &observer, ZFLevel observerLevel=ZFLevelAppNormal)
	see observerNotify

void	observerRemove (zfidentity eventId, const ZFListener &callback)
	see observerNotify

void	observerRemoveAll (zfidentity eventId)
	see observerNotify

void	observerRemoveAll (void)
	see observerNotify

zfbool	observerHasAdd (void)
	true if any observer has been added

zfbool	observerHasAdd (zfidentity eventId)
	true if any observer with eventId has been added

void	observerNotify (zfidentity eventId, ZFObject param0=zft_zfnull, ZFObject param1=zft_zfnull)
	notify the observer with eventId

void	observerNotifyWithSender (ZFObject customSender, zfidentity eventId, ZFObject param0=zft_zfnull, ZFObject *param1=zft_zfnull)
	see observerNotify

void	observerNotifyReversely (zfidentity eventId, ZFObject param0=zft_zfnull, ZFObject param1=zft_zfnull)
	see observerNotify

void	observerNotifyReverselyWithSender (ZFObject customSender, zfidentity eventId, ZFObject param0=zft_zfnull, ZFObject *param1=zft_zfnull)
	see observerNotify

ZFObserver &	observerHolder (void)
	access the internal observer holder

void	on (const zfstring &eventName, const ZFListener &observer, ZFLevel observerLevel=ZFLevelAppNormal)
	util to observerAdd

void	on (zfidentity eventId, const ZFListener &observer, ZFLevel observerLevel=ZFLevelAppNormal)
	util to observerAdd

void	onInit (const ZFListener &impl)
	util for script to achieve chained call

void	onDealloc (const ZFListener &impl)
	util for script to achieve chained call

zfbool	objectInstanceStateCheck (ZFObjectInstanceState state)
	object instance's state

zfbool	objectInitRunning (void)
	util method to check whether ZFObjectInstanceStateOnInit or ZFObjectInstanceStateOnInitFinish running

zfbool	objectDeallocRunning (void)
	util method to check whether ZFObjectInstanceStateOnDeallocPrepare or ZFObjectInstanceStateOnDealloc running

virtual zfbool	objectIsInternal (void)
	whether this object is internal object or its class is ZFClass::classIsInternal

virtual zfbool	objectIsInternalPrivate (void)
	whether this object is internal private object or its class is ZFClass::classIsInternalPrivate

Public Member Functions inherited from ZFStyleable
virtual zfanyT< ZFStyleable >	defaultStyle (void)
	return default style of this instance

void	styleableCopyFrom (ZFObject *anotherStyleable)
	copy style from another styleable, see ZFStyleable

virtual zfbool	styleableIsDefaultStyle (void)
	true if this object is defaultStyle

void	styleablePropertyGetAllT (ZFCoreArray< const ZFProperty * > &ret)
	return a list of styleable property, for debug use only

ZFCoreArray< const ZFProperty * >	styleablePropertyGetAll (void)
	return a list of styleable property, for debug use only

void	styleKey (const zfstring &styleKey)
	see ZFStyleSet

const zfstring &	styleKey (void)
	see ZFStyleSet

void	propStyle (const zfstring &propertyName, const zfstring &styleKey)
	see ZFStyleSet

const zfstring &	propStyle (const zfstring &propertyName)
	see ZFStyleSet

Public Member Functions inherited from ZFInterface
virtual ZFObject *	toObject (void)=0
	convert to ZFObject type

Public Member Functions inherited from ZFSerializable
zfbool	serializable (void)
	true if object is currently serializable, see ZFSerializable

zfbool	serializeFromData (const ZFSerializableData &serializableData, zfstring outErrorHint=zft_zfnull, ZFSerializableData outErrorPos=zft_zfnull)
	serialize from data, see ZFSerializable

zfbool	serializeToData (ZFSerializableData &serializableData, zfstring outErrorHint=zft_zfnull, ZFSerializable refOwner=zft_zfnull)
	serialize to data, see ZFSerializable

zfbool	serializeFromString (const zfchar src, zfindex srcLen=((zfindex) -1), zfstring errorHint=zft_zfnull)
	serialize from string, return false by default

zfbool	serializeToString (zfstring &ret, zfstring *errorHint=zft_zfnull)
	see serializeFromString

void	serializablePropertyTypeGetAll (ZFCoreArray< const ZFProperty * > &notSerializableProperty, ZFCoreArray< const ZFProperty * > &serializableProperty, ZFCoreArray< const ZFProperty * > &embededProperty)
	return a list of each type of property, for debug use only

zfstring	serializablePropertyTypeInfo (void)
	return info of serializablePropertyTypeGetAll, for debug use only

void	serializableGetAllSerializablePropertyT (ZFCoreArray< const ZFProperty * > &ret)
	see serializableGetAllSerializableProperty

ZFCoreArray< const ZFProperty * >	serializableGetAllSerializableProperty (void)
	get all serializable property, usually for debug only, see serializableOnCheckPropertyType

void	serializableGetAllSerializableEmbededPropertyT (ZFCoreArray< const ZFProperty * > &ret)
	see serializableGetAllSerializableEmbededProperty

ZFCoreArray< const ZFProperty * >	serializableGetAllSerializableEmbededProperty (void)
	get all serializable embeded property, usually for debug only, see serializableOnCheckPropertyType

virtual void	serializableInfoT (zfstring &ret)
	get info as a serializable

virtual zfstring	serializableInfo (void)
	see serializableInfoT

Public Member Functions inherited from ZFCopyable
zfautoT< ZFCopyable >	copy (void)
	return a copy of this object

void	copyFrom (ZFObject *anotherObj)
	see copy, anotherObj must be same type as this object (by classData), otherwise, do nothing

Static Public Member Functions
static const ZFClass *	ClassData (void)
	get class info

static zfidentity	E_OnDraw (void)
	see ZFObject::observerNotify

Static Public Member Functions inherited from ZFUIView
static const ZFClass *	ClassData (void)
	get class info

static zfanyT< ZFUIView >	DefaultStyle (void)

static zfidentity	E_ViewTreeInWindowOnUpdate (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewTreeVisibleOnUpdate (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewChildOnUpdate (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewChildOnAdd (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewChildOnRemove (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewOnAddToParent (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewOnRemoveFromParent (void)
	see ZFObject::observerNotify

static zfidentity	E_UIScaleOnUpdate (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewFocusOnUpdate (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewOnEvent (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewLayoutOnLayoutRequest (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewLayoutOnMeasure (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewLayoutOnLayoutPrepare (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewLayoutOnLayout (void)
	see ZFObject::observerNotify

static zfidentity	E_ViewLayoutOnLayoutFinish (void)
	see ZFObject::observerNotify

static zfidentity	E_NativeImplViewMarginOnUpdate (void)
	see ZFObject::observerNotify

static ZFUITransformFlags	transformAvailable ()
	whether transform is supported

Static Public Member Functions inherited from ZFStyle
static const ZFClass *	ClassData (void)
	get class info

Static Public Member Functions inherited from ZFObject
static const ZFClass *	ClassData (void)
	get class info

static zfidentity	E_ObjectBeforeAlloc (void)
	see ZFObject::observerNotify

static zfidentity	E_ObjectAfterAlloc (void)
	see ZFObject::observerNotify

static zfidentity	E_ObjectBeforeDealloc (void)
	see ZFObject::observerNotify

static zfidentity	E_ObjectPropertyValueOnUpdate (void)
	see ZFObject::observerNotify

static zfidentity	E_ObjectPropertyValueOnReset (void)
	see ZFObject::observerNotify

Static Public Member Functions inherited from ZFStyleable
static const ZFClass *	ClassData (void)
	get class info

Static Public Member Functions inherited from ZFInterface
static const ZFClass *	ClassData (void)
	get class info

Static Public Member Functions inherited from ZFSerializable
static const ZFClass *	ClassData (void)
	get class info

Static Public Member Functions inherited from ZFCopyable
static const ZFClass *	ClassData (void)
	get class info

Protected Types
typedef ZFUIView	zfsuper
	class ref to super

typedef ZFUIDrawableView	zfself
	class ref to self

Protected Types inherited from ZFUIView
typedef ZFStyle	zfsuper
	class ref to super

typedef ZFUIView	zfself
	class ref to self

Protected Types inherited from ZFStyle
typedef ZFObject	zfsuper
	class ref to super

typedef ZFStyle	zfself
	class ref to self

Protected Types inherited from ZFObject
typedef _ZFP_Obj_Base	zfsuper
	class ref to super

typedef ZFObject	zfself
	class ref to self

Protected Types inherited from ZFStyleable
typedef ZFInterface	zfsuper
	typedef for super (always ZFInterface for an interface type)

typedef ZFStyleable	zfself
	typedef for self

Protected Types inherited from ZFInterface
typedef _ZFP_ObjI_Base	zfsuper
	typedef for super (always ZFInterface for an interface type)

typedef ZFInterface	zfself
	typedef for self

Protected Types inherited from ZFSerializable
typedef ZFInterface	zfsuper
	typedef for super (always ZFInterface for an interface type)

typedef ZFSerializable	zfself
	typedef for self

Protected Types inherited from ZFCopyable
typedef ZFInterface	zfsuper
	typedef for super (always ZFInterface for an interface type)

typedef ZFCopyable	zfself
	typedef for self

Protected Member Functions
virtual void	onDraw (void)
	see E_OnDraw

virtual void	objectOnInit (void)
	override this to init your object

Protected Member Functions inherited from ZFUIView
virtual zfbool	serializableOnSerializeFromData (const ZFSerializableData &serializableData, zfstring outErrorHint=zft_zfnull, ZFSerializableData outErrorPos=zft_zfnull)
	for serializable data that has "category" attribute, ZFSerializable would ignore it and leave it to subclass to resolve, see ZFSerializable

virtual zfbool	serializableOnSerializeToData (ZFSerializableData &serializableData, zfstring outErrorHint=zft_zfnull, ZFSerializable refOwner=zft_zfnull)
	corresponding to serializableOnSerializeFromData, return whether the task is success, see ZFSerializable

virtual zfbool	serializableOnCheckNeedSerializeChildren (void)
	whether we should serialize all children

virtual void	objectOnDealloc (void)
	override this to destroy your object

virtual void	objectOnDeallocPrepare (void)
	called before objectOnDealloc, safe to call virtual functions here

virtual void	objectInfoImplAppend (zfstring &ret)
	see objectInfo

virtual void	nativeImplView (void *nativeImplView, ZFUIViewNativeImplViewDeleteCallback nativeImplViewDeleteCallback, zfbool nativeImplViewRequireVirtualIndex)
	see nativeImplView

virtual void	nativeImplViewMarginImplUpdate (ZFUIMargin &nativeImplViewMargin)
	see nativeImplViewMargin, subclass must call super and "append" to existing margin

virtual void	nativeImplViewMarginOnUpdate (void)
	see E_NativeImplViewMarginOnUpdate

virtual void	nativeImplViewOnLayout (ZFUIRect &ret, const ZFUIRect &bounds, const ZFUIMargin &nativeImplViewMargin)
	called to layout nativeImplView

virtual void	implChildOnAdd (ZFUIView *child, zfindex virtualIndex, ZFUIViewChildLayer childLayer, zfindex childLayerIndex)
	called to add or remove view to impl

virtual void	implChildOnRemove (ZFUIView *child, zfindex virtualIndex, ZFUIViewChildLayer childLayer, zfindex childLayerIndex)
	see implChildOnAdd, implChildOnRemoveAllForDealloc

virtual void	implChildOnRemoveAllForDealloc (void)
	called to remove all children during parent dealloc for performance

virtual void	focusOnUpdate (void)
	see E_ViewFocusOnUpdate

virtual void	UIScaleOnUpdate (void)
	see UIScale, ensured called only when scale value actually changed

virtual const ZFClass *	layoutParamClass (void)
	see layoutParamCreate

virtual void	layoutParamOnUpdate (ZFUILayoutParam *layoutParam)
	see layoutParamCreate

virtual void	layoutOnLayoutRequest (void)
	called during layoutRequest

virtual void	layoutOnMeasure (ZFUISize &ret, const ZFUISize &sizeHint, const ZFUISizeParam &sizeParam)
	called by layoutMeasure to decide the view's size

virtual void	layoutOnMeasureFinish (ZFUISize &measuredSize, const ZFUISize &sizeHint, const ZFUISizeParam &sizeParam)
	see E_ViewLayoutOnMeasure

virtual void	layoutOnLayoutPrepare (const ZFUIRect &bounds)
	see E_ViewLayoutOnLayoutPrepare

virtual void	layoutOnLayout (const ZFUIRect &bounds)
	called by viewFrame to layout the view and children

virtual void	layoutOnLayoutFinish (const ZFUIRect &bounds)
	see E_ViewLayoutOnLayoutFinish

virtual void	layoutChildOffsetOnUpdate (ZFUIPoint &ret)
	see layoutChildOffset

virtual void	viewTreeInWindowOnUpdate (void)
	see E_ViewTreeInWindowOnUpdate

virtual void	viewTreeVisibleOnUpdate (void)
	see E_ViewTreeVisibleOnUpdate

virtual void	viewChildOnUpdate (void)
	see E_ViewChildOnUpdate

virtual void	viewChildOnAdd (ZFUIView *child, ZFUIViewChildLayer childLayer)
	see E_ViewChildOnAdd

virtual void	viewChildOnRemove (ZFUIView *child, ZFUIViewChildLayer childLayer)
	see E_ViewChildOnRemove

virtual void	viewOnAddToParent (ZFUIView *parent)
	see E_ViewOnAddToParent

virtual void	viewOnRemoveFromParent (ZFUIView *parent)
	see E_ViewOnRemoveFromParent

virtual zfbool	internalViewShouldLayout (ZFUIView *internalView)
	called to check whether the internal view should be layouted using default layout logic, return true by default

virtual void	internalViewOnLayout (const ZFUIRect &bounds)
	see internalBgViewAdd

virtual void	viewEventOnEvent (ZFUIEvent *event)
	notified when a ZFUIEvent occurred

virtual void	viewEventOnMouseEvent (ZFUIMouseEvent *mouseEvent)
	called when mouse event occurred

virtual void	viewEventOnKeyEvent (ZFUIKeyEvent *keyEvent)
	called when key occurred

virtual void	viewEventOnKeyEventResolveFocus (ZFUIKeyEvent *keyEvent)
	called by viewEventOnKeyEvent to resolve focus move key event

virtual void	viewEventOnWheelEvent (ZFUIWheelEvent *wheelEvent)
	called when wheel event occurred

virtual void	styleableOnCopyFrom (ZFObject *anotherStyleable)
	for a view, copy style would also copy all of it's children

virtual void	observerOnAdd (zfidentity eventId)
	called when add first observer

virtual void	observerOnRemove (zfidentity eventId)
	called when remove last observer

Protected Member Functions inherited from ZFStyle
virtual void	copyableOnCopyFrom (ZFObject *anotherObj)
	called by copy to copy contents from anotherObj

Protected Member Functions inherited from ZFObject
virtual void	objectInfoImpl (zfstring &ret)
	see objectInfo

virtual zfidentity	objectHashImpl (void)
	see objectHash

virtual ZFCompareResult	objectCompareImpl (ZFObject *anotherObj)
	see objectCompare

virtual ZFCompareResult	objectCompareValueImpl (ZFObject *anotherObj)
	see objectCompareValue

virtual void	observerOnEvent (const ZFArgs &zfargs)
	notified when observerNotify

virtual void	objectOnInitFinish (void)
	called after objectOnInit, safe to call virtual functions here

virtual void	objectOnRetain (void)
	called to retain object

virtual void	objectOnRelease (void)
	called to release object

virtual void	objectPropertyValueOnUpdate (const ZFProperty property, const void oldValue)
	see E_ObjectPropertyValueOnUpdate

virtual void	objectPropertyValueOnReset (const ZFProperty *property)
	see E_ObjectPropertyValueOnReset

Protected Member Functions inherited from ZFStyleable
virtual void	styleableOnCopyPropertyFrom (ZFObject anotherStyleable, const ZFProperty property)
	copy property with styleable logic

Protected Member Functions inherited from ZFSerializable
virtual ZFSerializablePropertyType	serializableOnCheckPropertyType (const ZFProperty *property)
	check the property type that serializable should do what while serializing

virtual zfbool	serializableOnCheck (void)
	see serializable

virtual zfbool	serializableOnSerializePropertyFromData (const ZFSerializableData &propertyData, const ZFProperty property, zfstring outErrorHint=zft_zfnull, ZFSerializableData *outErrorPos=zft_zfnull)
	see serializableOnCheckPropertyType, usually you have no need to override this method, see ZFSerializable

virtual zfbool	serializableOnSerializePropertyToData (ZFSerializableData &ownerData, const ZFProperty property, zfstring outErrorHint=zft_zfnull, ZFSerializable *refOwner=zft_zfnull)
	see serializableOnCheckPropertyType, usually you have no need to override this method, see ZFSerializable

virtual zfbool	serializableOnSerializeEmbededPropertyFromData (const ZFSerializableData &propertyData, const ZFProperty property, zfstring outErrorHint=zft_zfnull, ZFSerializableData *outErrorPos=zft_zfnull)
	see serializableOnCheckPropertyType, usually you have no need to override this method, see ZFSerializable

virtual zfbool	serializableOnSerializeEmbededPropertyToData (ZFSerializableData &ownerData, const ZFProperty property, ZFSerializable refOwner, zfstring *outErrorHint=zft_zfnull)
	see serializableOnCheckPropertyType, usually you have no need to override this method, see ZFSerializable

virtual zfbool	serializableOnSerializeFromString (const zfchar src, zfindex srcLen=((zfindex) -1), zfstring errorHint=zft_zfnull)
	see serializeFromString

virtual zfbool	serializableOnSerializeToString (zfstring &ret, zfstring *errorHint=zft_zfnull)
	see serializeFromString

Detailed Description

abstract view that can draw user content

Member Function Documentation

◆ classData()

virtual const ZFClass * ZFUIDrawableView::classData ( void )

inlinevirtual

get instance's class info

Reimplemented from ZFUIView.

◆ E_OnDraw()

static zfidentity ZFUIDrawableView::E_OnDraw ( void )

static

see ZFObject::observerNotify

called to draw the contents, see ZFUIDrawableView

◆ objectOnInit()

virtual void ZFUIDrawableView::objectOnInit ( void )

protectedvirtual

override this to init your object

subclass must call superclass's objectOnInit before any other code if override
you may also declare objectOnInit with params like this:

zfclass Parent : ... {
    ...
protected:
    virtual void objectOnInit(void) {...};
};
zfclass Child : Parent {
protected:
    // override all parent's objectOnInit is also required,
    // because of function hiding of C++
    zfoverride
    virtual void objectOnInit(void) {
        zfsuper::objectOnInit();
    }
    // custom init entry
    virtual void objectOnInit(Params...) {
        // your extra init steps
        ...
    }
};

Warning: objectOnInit and objectOnDealloc is called as a virtual function, take good care of other virtual function call, use zfself::func() instead of this->func() if necessary, or use objectOnInitFinish/objectOnDeallocPrepare, or declare your own constructor with ZFOBJECT_DECLARE_WITH_CUSTOM_CTOR

Note: (ZFTAG_LIMITATION) due to limitations of C++, if your parent type declared objectOnInit with different params, and your child type want to override part of those objectOnInit, then your child type must also override all objectOnInit that parent declared, otherwise, some may be hidden; for objects that designed not to be allocated by user, you should use ZFOBJECT_PRIVATE_ALLOC, typically usage:
zfclass MyObject : zfextend ZFObject {

ZFOBJECT_DECLARE(MyObject, ZFObject)

ZFOBJECT_PRIVATE_ALLOC("should be created by MyObject::instanceForXxx only")

public:

static zfauto instanceForXxx(xxx) {

// can only be allocated by reflection

return zfself::ClassData()->newInstance();

}

};

static void func(void) {

// MyObject *obj = zfAlloc(MyObject); // would compile error

zfauto obj = MyObject::instanceForXxx(xxx); // OK

}

zfextend
#define zfextend
dummy macro shows class inherit from another
Definition ZFCoreTypeDef_ClassType.h:53

ZFOBJECT_DECLARE
#define ZFOBJECT_DECLARE(ChildClass, SuperClass,...)
necessary for every class inherit from ZFObject
Definition ZFObjectDeclare.h:126

ZFOBJECT_PRIVATE_ALLOC
#define ZFOBJECT_PRIVATE_ALLOC(...)
mark this object can not be allocated directly
Definition ZFObjectDeclare.h:245

ZFClass::newInstance
zfauto newInstance(void) const
make a new instance of ZFObject dynamically, which is described by ZFClass

ZFUIDrawableView::ClassData
static const ZFClass * ClassData(void)
get class info
Definition ZFUIDraw.h:20

zfauto
a ZFObject holder which would release content object automatically when destroyed
Definition zfautoFwd.h:34

Reimplemented from ZFUIView.

The documentation for this class was generated from the following file:

ZFUIDraw.h

ZFFramework

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Detailed Description

Member Function Documentation

◆ classData()

◆ E_OnDraw()

◆ objectOnInit()
