ZFUIButtonGroup Class Reference

button group util More...

#include <ZFUIButtonGroup.h>

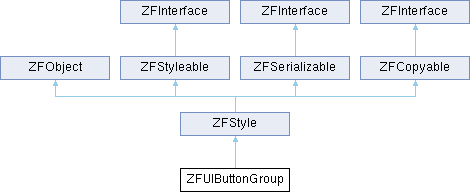

Inheritance diagram for ZFUIButtonGroup:

Public Types
enum
Public Types inherited from ZFStyle
enum
Public Types inherited from ZFObject
enum

Public Member Functions
virtual const ZFClass *	classData (void)
	get instance's class info
virtual ZFUIButtonGroupType &	type ()
	button group's type, see v_ZFUIButtonGroupType::e_Normal for more info
virtual void	type (ZFUIButtonGroupType const &propertyValue)
	see type
virtual zfindex	buttonCount ()
	button count
virtual zfindex	buttonFind (ZFUIButton *button)
	find the button's index or return zfindexMax() if not exist
virtual zfanyT< ZFUIButton >	buttonAt (zfindex buttonIndex)
	get button at index
virtual void	button (ZFUIButton *button, zfindex atIndex=(((zfindex) -1)))
	add button
virtual void	buttonRemove (ZFUIButton *button)
	remove button or do nothing if not in this button group
virtual void	buttonRemoveAt (zfindex buttonIndex)
	remove button at index
virtual void	buttonRemoveAll ()
	remove all button
virtual zfbool &	tabAllowUnchecked ()
	for v_ZFUIButtonGroupType::e_Tab type only, whether allow uncheck all button, false by default
virtual void	tabAllowUnchecked (zfbool const &propertyValue)
	see tabAllowUnchecked
virtual zfindex &	tabChecked ()
	for v_ZFUIButtonGroupType::e_Tab type only, the checked tab index, zfindexMax() by default
virtual void	tabChecked (zfindex const &propertyValue)
	see tabChecked
virtual void	containerAttach (ZFUIView *container)
	util method to attach container to this button group
virtual void	containerDetach ()
	detach container, and remove all buttons, see containerAttach
virtual ZFUIView *	container ()
	the container currently attached, see containerAttach
Public Member Functions inherited from ZFObject
const ZFClass *	classDynamic (void)
	dynamic class of this object, see ZFClassDynamicRegister
zfindex	objectRetainCount (void)
	return the object's retain count
void	objectInfoOfInstanceT (zfstring &ret)
	see objectInfoOfInstance
zfstring	objectInfoOfInstance (void)
	return a short string describe the object instance
void	objectInfoT (zfstring &ret)
	see objectInfo
zfstring	objectInfo (void)
	return object info
zfidentity	objectHash (void)
	get hash of this object
ZFCompareResult	objectCompare (ZFObject *anotherObj)
	compare with anotherObj
ZFCompareResult	objectCompareValue (ZFObject *anotherObj)
	explicitly compare object by logical value, see objectCompare
virtual zfauto	invoke (const zfstring &methodName)
	util method to perform ZFDI_invoke, do nothing if fail
virtual zfauto	invoke (const zfstring &methodName, ZFObject *param0, ZFObject *param1=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param2=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param3=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param4=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param5=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param6=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param7=((ZFObject *const &) _ZFP_ZFMP_DEF))
	util method to perform ZFDI_invoke, do nothing if fail
virtual zfbool	invokeT (zfauto &ret, zfstring *errorHint, const zfstring &methodName, ZFObject *param0=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param1=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param2=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param3=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param4=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param5=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param6=((ZFObject *const &) _ZFP_ZFMP_DEF), ZFObject *param7=((ZFObject *const &) _ZFP_ZFMP_DEF))
	util method to perform ZFDI_invoke, do nothing if fail
virtual zfauto	invokeDetail (const zfstring &methodName, const ZFCoreArray< zfauto > &params, zfbool *success=zft_zfnull, zfstring *errorHint=zft_zfnull)
	util method to perform ZFDI_invoke, do nothing if fail
zfbool	objectTagExist (void)
	see objectTag, true if this object has tag, and tag can be checked by objectTagGetAllKeyValue
void	objectTag (const zfstring &key, ZFObject *tag)
	used to hold a object for app's use, auto retained
zfany	objectTag (const zfstring &key)
	see objectTag
void	objectTagGetAllKeyValue (ZFCoreArray< zfstring > &allKey, ZFCoreArray< zfauto > &allValue)
	get all key value
void	objectTagRemove (const zfstring &key)
	remove tag, same as set tag to null
zfauto	objectTagRemoveAndGet (const zfstring &key)
	remove tag, return removed tag or null if not exist
void	objectTagRemoveAll (void)
	remove all tag
void	observerAdd (zfidentity eventId, const ZFListener &observer, ZFLevel observerLevel=ZFLevelAppNormal)
	see observerNotify
void	observerAddForOnce (zfidentity eventId, const ZFListener &observer, ZFLevel observerLevel=ZFLevelAppNormal)
	see observerNotify
void	observerRemove (zfidentity eventId, const ZFListener &callback)
	see observerNotify
void	observerRemoveAll (zfidentity eventId)
	see observerNotify
void	observerRemoveAll (void)
	see observerNotify
zfbool	observerHasAdd (void)
	true if any observer has been added
zfbool	observerHasAdd (zfidentity eventId)
	true if any observer with eventId has been added
void	observerNotify (zfidentity eventId, ZFObject *param0=zft_zfnull, ZFObject *param1=zft_zfnull)
	notify the observer with eventId
void	observerNotifyWithSender (ZFObject *customSender, zfidentity eventId, ZFObject *param0=zft_zfnull, ZFObject *param1=zft_zfnull)
	see observerNotify
void	observerNotifyReversely (zfidentity eventId, ZFObject *param0=zft_zfnull, ZFObject *param1=zft_zfnull)
	see observerNotify
void	observerNotifyReverselyWithSender (ZFObject *customSender, zfidentity eventId, ZFObject *param0=zft_zfnull, ZFObject *param1=zft_zfnull)
	see observerNotify
ZFObserver &	observerHolder (void)
	access the internal observer holder
void	on (const zfstring &eventName, const ZFListener &observer, ZFLevel observerLevel=ZFLevelAppNormal)
	util to observerAdd
void	on (zfidentity eventId, const ZFListener &observer, ZFLevel observerLevel=ZFLevelAppNormal)
	util to observerAdd
void	onInit (const ZFListener &impl)
	util for script to achieve chained call
void	onDealloc (const ZFListener &impl)
	util for script to achieve chained call
zfbool	objectInstanceStateCheck (ZFObjectInstanceState state)
	object instance's state
zfbool	objectInitRunning (void)
	util method to check whether ZFObjectInstanceStateOnInit or ZFObjectInstanceStateOnInitFinish running
zfbool	objectDeallocRunning (void)
	util method to check whether ZFObjectInstanceStateOnDeallocPrepare or ZFObjectInstanceStateOnDealloc running
virtual zfbool	objectIsInternal (void)
	whether this object is internal object or its class is ZFClass::classIsInternal
virtual zfbool	objectIsInternalPrivate (void)
	whether this object is internal private object or its class is ZFClass::classIsInternalPrivate
Public Member Functions inherited from ZFStyleable
virtual zfanyT< ZFStyleable >	defaultStyle (void)
	return default style of this instance
void	styleableCopyFrom (ZFObject *anotherStyleable)
	copy style from another styleable, see ZFStyleable
virtual zfbool	styleableIsDefaultStyle (void)
	true if this object is defaultStyle
void	styleablePropertyGetAllT (ZFCoreArray< const ZFProperty * > &ret)
	return a list of styleable property, for debug use only
ZFCoreArray< const ZFProperty * >	styleablePropertyGetAll (void)
	return a list of styleable property, for debug use only
void	styleKey (const zfstring &styleKey)
	see ZFStyleSet
const zfstring &	styleKey (void)
	see ZFStyleSet
void	propStyle (const zfstring &propertyName, const zfstring &styleKey)
	see ZFStyleSet
const zfstring &	propStyle (const zfstring &propertyName)
	see ZFStyleSet
Public Member Functions inherited from ZFInterface
virtual ZFObject *	toObject (void)=0
	convert to ZFObject type
Public Member Functions inherited from ZFSerializable
zfbool	serializable (void)
	true if object is currently serializable, see ZFSerializable
zfbool	serializeFromData (const ZFSerializableData &serializableData, zfstring *outErrorHint=zft_zfnull, ZFSerializableData *outErrorPos=zft_zfnull)
	serialize from data, see ZFSerializable
zfbool	serializeToData (ZFSerializableData &serializableData, zfstring *outErrorHint=zft_zfnull, ZFSerializable *refOwner=zft_zfnull)
	serialize to data, see ZFSerializable
zfbool	serializeFromString (const zfchar *src, zfindex srcLen=((zfindex) -1), zfstring *errorHint=zft_zfnull)
	serialize from string, return false by default
zfbool	serializeToString (zfstring &ret, zfstring *errorHint=zft_zfnull)
	see serializeFromString
void	serializablePropertyTypeGetAll (ZFCoreArray< const ZFProperty * > &notSerializableProperty, ZFCoreArray< const ZFProperty * > &serializableProperty, ZFCoreArray< const ZFProperty * > &embededProperty)
	return a list of each type of property, for debug use only
zfstring	serializablePropertyTypeInfo (void)
	return info of serializablePropertyTypeGetAll, for debug use only
void	serializableGetAllSerializablePropertyT (ZFCoreArray< const ZFProperty * > &ret)
	see serializableGetAllSerializableProperty
ZFCoreArray< const ZFProperty * >	serializableGetAllSerializableProperty (void)
	get all serializable property, usually for debug only, see serializableOnCheckPropertyType
void	serializableGetAllSerializableEmbededPropertyT (ZFCoreArray< const ZFProperty * > &ret)
	see serializableGetAllSerializableEmbededProperty
ZFCoreArray< const ZFProperty * >	serializableGetAllSerializableEmbededProperty (void)
	get all serializable embeded property, usually for debug only, see serializableOnCheckPropertyType
virtual void	serializableInfoT (zfstring &ret)
	get info as a serializable
virtual zfstring	serializableInfo (void)
	see serializableInfoT
Public Member Functions inherited from ZFCopyable
zfautoT< ZFCopyable >	copy (void)
	return a copy of this object
void	copyFrom (ZFObject *anotherObj)
	see copy, anotherObj must be same type as this object (by classData), otherwise, do nothing

Static Public Member Functions
static const ZFClass *	ClassData (void)
	get class info
static zfidentity	E_ButtonOnAdd (void)
	see ZFObject::observerNotify
static zfidentity	E_ButtonOnRemove (void)
	see ZFObject::observerNotify
static zfidentity	E_TabOnUpdate (void)
	see ZFObject::observerNotify
static zfidentity	E_TabOnClickChecked (void)
	see ZFObject::observerNotify
Static Public Member Functions inherited from ZFStyle
static const ZFClass *	ClassData (void)
	get class info
Static Public Member Functions inherited from ZFObject
static const ZFClass *	ClassData (void)
	get class info
static zfidentity	E_ObjectBeforeAlloc (void)
	see ZFObject::observerNotify
static zfidentity	E_ObjectAfterAlloc (void)
	see ZFObject::observerNotify
static zfidentity	E_ObjectBeforeDealloc (void)
	see ZFObject::observerNotify
static zfidentity	E_ObjectPropertyValueOnUpdate (void)
	see ZFObject::observerNotify
static zfidentity	E_ObjectPropertyValueOnReset (void)
	see ZFObject::observerNotify
Static Public Member Functions inherited from ZFStyleable
static const ZFClass *	ClassData (void)
	get class info
Static Public Member Functions inherited from ZFInterface
static const ZFClass *	ClassData (void)
	get class info
Static Public Member Functions inherited from ZFSerializable
static const ZFClass *	ClassData (void)
	get class info
Static Public Member Functions inherited from ZFCopyable
static const ZFClass *	ClassData (void)
	get class info

Protected Types
typedef ZFStyle	zfsuper
	class ref to super
typedef ZFUIButtonGroup	zfself
	class ref to self
Protected Types inherited from ZFStyle
typedef ZFObject	zfsuper
	class ref to super
typedef ZFStyle	zfself
	class ref to self
Protected Types inherited from ZFObject
typedef _ZFP_Obj_Base	zfsuper
	class ref to super
typedef ZFObject	zfself
	class ref to self
Protected Types inherited from ZFStyleable
typedef ZFInterface	zfsuper
	typedef for super (always ZFInterface for an interface type)
typedef ZFStyleable	zfself
	typedef for self
Protected Types inherited from ZFInterface
typedef _ZFP_ObjI_Base	zfsuper
	typedef for super (always ZFInterface for an interface type)
typedef ZFInterface	zfself
	typedef for self
Protected Types inherited from ZFSerializable
typedef ZFInterface	zfsuper
	typedef for super (always ZFInterface for an interface type)
typedef ZFSerializable	zfself
	typedef for self
Protected Types inherited from ZFCopyable
typedef ZFInterface	zfsuper
	typedef for super (always ZFInterface for an interface type)
typedef ZFCopyable	zfself
	typedef for self

Protected Member Functions
virtual void	buttonOnEvent (ZFUIButton *button, zfindex buttonIndex, zfidentity eventId)
	called when any of button event are notified to the buttons managed by this group
virtual void	buttonOnAdd (ZFUIButton *button, zfindex buttonIndex)
	see E_ButtonOnAdd
virtual void	buttonOnRemove (ZFUIButton *button, zfindex buttonIndex)
	see E_ButtonOnRemove
virtual void	objectOnInit (ZFUIView *container)
	construct with containerAttach
virtual void	tabOnUpdate (ZFUIButton *button, zfindex buttonIndexPrev)
	see E_TabOnUpdate
virtual void	tabOnClickChecked (ZFUIButton *button, zfindex buttonIndex)
	see E_TabOnClickChecked
virtual void	objectOnInit (void)
	override this to init your object
virtual void	objectOnDealloc (void)
	override this to destroy your object
Protected Member Functions inherited from ZFStyle
virtual void	copyableOnCopyFrom (ZFObject *anotherObj)
	called by copy to copy contents from anotherObj
Protected Member Functions inherited from ZFObject
virtual void	objectInfoImpl (zfstring &ret)
	see objectInfo
virtual void	objectInfoImplAppend (zfstring &ret)
	see objectInfo
virtual zfidentity	objectHashImpl (void)
	see objectHash
virtual ZFCompareResult	objectCompareImpl (ZFObject *anotherObj)
	see objectCompare
virtual ZFCompareResult	objectCompareValueImpl (ZFObject *anotherObj)
	see objectCompareValue
virtual void	observerOnAdd (zfidentity eventId)
	called when add first observer
virtual void	observerOnRemove (zfidentity eventId)
	called when remove last observer
virtual void	observerOnEvent (const ZFArgs &zfargs)
	notified when observerNotify
virtual void	objectOnInitFinish (void)
	called after objectOnInit, safe to call virtual functions here
virtual void	objectOnDeallocPrepare (void)
	called before objectOnDealloc, safe to call virtual functions here
virtual void	objectOnRetain (void)
	called to retain object
virtual void	objectOnRelease (void)
	called to release object
virtual void	objectPropertyValueOnUpdate (const ZFProperty *property, const void *oldValue)
	see E_ObjectPropertyValueOnUpdate
virtual void	objectPropertyValueOnReset (const ZFProperty *property)
	see E_ObjectPropertyValueOnReset
Protected Member Functions inherited from ZFStyleable
virtual void	styleableOnCopyPropertyFrom (ZFObject *anotherStyleable, const ZFProperty *property)
	copy property with styleable logic
virtual void	styleableOnCopyFrom (ZFObject *anotherStyleable)
	for subclass to achieve custom style copy step, called by styleableCopyFrom, see ZFStyleable
Protected Member Functions inherited from ZFSerializable
virtual ZFSerializablePropertyType	serializableOnCheckPropertyType (const ZFProperty *property)
	check the property type that serializable should do what while serializing
virtual zfbool	serializableOnCheck (void)
	see serializable
virtual zfbool	serializableOnSerializeFromData (const ZFSerializableData &serializableData, zfstring *outErrorHint=zft_zfnull, ZFSerializableData *outErrorPos=zft_zfnull)
	for serializable data that has "category" attribute, ZFSerializable would ignore it and leave it to subclass to resolve, see ZFSerializable
virtual zfbool	serializableOnSerializeToData (ZFSerializableData &serializableData, zfstring *outErrorHint=zft_zfnull, ZFSerializable *refOwner=zft_zfnull)
	corresponding to serializableOnSerializeFromData, return whether the task is success, see ZFSerializable
virtual zfbool	serializableOnSerializePropertyFromData (const ZFSerializableData &propertyData, const ZFProperty *property, zfstring *outErrorHint=zft_zfnull, ZFSerializableData *outErrorPos=zft_zfnull)
	see serializableOnCheckPropertyType, usually you have no need to override this method, see ZFSerializable
virtual zfbool	serializableOnSerializePropertyToData (ZFSerializableData &ownerData, const ZFProperty *property, zfstring *outErrorHint=zft_zfnull, ZFSerializable *refOwner=zft_zfnull)
	see serializableOnCheckPropertyType, usually you have no need to override this method, see ZFSerializable
virtual zfbool	serializableOnSerializeEmbededPropertyFromData (const ZFSerializableData &propertyData, const ZFProperty *property, zfstring *outErrorHint=zft_zfnull, ZFSerializableData *outErrorPos=zft_zfnull)
	see serializableOnCheckPropertyType, usually you have no need to override this method, see ZFSerializable
virtual zfbool	serializableOnSerializeEmbededPropertyToData (ZFSerializableData &ownerData, const ZFProperty *property, ZFSerializable *refOwner, zfstring *outErrorHint=zft_zfnull)
	see serializableOnCheckPropertyType, usually you have no need to override this method, see ZFSerializable
virtual zfbool	serializableOnSerializeFromString (const zfchar *src, zfindex srcLen=((zfindex) -1), zfstring *errorHint=zft_zfnull)
	see serializeFromString
virtual zfbool	serializableOnSerializeToString (zfstring &ret, zfstring *errorHint=zft_zfnull)
	see serializeFromString

Detailed Description

button group util

a button group is simply a abstract button manager, you need to add buttons to both button group and view tree

Member Function Documentation

classData()

virtual const ZFClass * ZFUIButtonGroup::classData ( void )

inlinevirtual

get instance's class info

Reimplemented from ZFStyle.

E_ButtonOnAdd()

zfidentity ZFUIButtonGroup::E_ButtonOnAdd ( void )

static

see ZFObject::observerNotify

called when button added, sender is the button, param0 is this button group itself, param1 is a v_zfindex which shows the button's index

E_ButtonOnRemove()

zfidentity ZFUIButtonGroup::E_ButtonOnRemove ( void )

static

see ZFObject::observerNotify

called when button removed, sender is the button, param0 is this button group itself, param1 is a v_zfindex which shows the button's index

button()

virtual void ZFUIButtonGroup::button ( ZFUIButton * button, zfindex atIndex = (((zfindex) -1)) )

virtual

add button

newly added button's setting would be changed according type, before buttonOnAdd

buttonRemove()

virtual void ZFUIButtonGroup::buttonRemove ( ZFUIButton * button )

virtual

remove button or do nothing if not in this button group

removed button's setting won't be reset by this method

buttonRemoveAt()

virtual void ZFUIButtonGroup::buttonRemoveAt ( zfindex buttonIndex )

virtual

remove button at index

removed button's setting won't be reset by this method

buttonOnEvent()

virtual void ZFUIButtonGroup::buttonOnEvent ( ZFUIButton * button, zfindex buttonIndex, zfidentity eventId )

inlineprotectedvirtual

called when any of button event are notified to the buttons managed by this group

here's a list of button event that would be fired:

• ZFUIButton::E_ButtonOnClick
• ZFUIButton::E_ButtonStateOnUpdate
• ZFUIButton::E_ButtonMouseOnDown
• ZFUIButton::E_ButtonMouseOnMoveEnter
• ZFUIButton::E_ButtonMouseOnMoveExit
• ZFUIButton::E_ButtonMouseOnMoveInside
• ZFUIButton::E_ButtonMouseOnMoveOutside
• ZFUIButton::E_ButtonMouseOnUpInside
• ZFUIButton::E_ButtonMouseOnUp

for example:

ZFUIButtonGroup *buttonGroup = ...;
buttonGroup->->observerAdd(ZFUIButton::E_ButtonOnClick(), myObserver);

note: sender is the button that fired the button event, param0 is the button group itself, param1 is a v_zfindex which shows the button's index

E_TabOnUpdate()

zfidentity ZFUIButtonGroup::E_TabOnUpdate ( void )

static

see ZFObject::observerNotify

for v_ZFUIButtonGroupType::e_Tab type only
called when tabChecked changed, sender is the newly clicked button, param0 is the button group itself, param1 is a v_zfindex which shows the previous checked button index (may be zfindexMax if nothing checked previously)

E_TabOnClickChecked()

zfidentity ZFUIButtonGroup::E_TabOnClickChecked ( void )

static

see ZFObject::observerNotify

for v_ZFUIButtonGroupType::e_Tab type only
called when checked button clicked, sender is the clicked button, param0 is the button group itself, param1 is a v_zfindex which shows the button's index

containerAttach()

virtual void ZFUIButtonGroup::containerAttach ( ZFUIView * container )

virtual

util method to attach container to this button group

if a container is attached:

• all children of the container would be added as child button of this button group, if the child is type of ZFUIButton
• when adding or removing child to container, the child would also be added or removed to this button group, if the child is type of ZFUIButton

objectOnInit()

virtual void ZFUIButtonGroup::objectOnInit ( void )

protectedvirtual

override this to init your object

subclass must call superclass's objectOnInit before any other code if override
you may also declare objectOnInit with params like this:

zfclass Parent : ... {
    ...
protected:
    virtual void objectOnInit(void) {...};
};
zfclass Child : Parent {
protected:
    // override all parent's objectOnInit is also required,
    // because of function hiding of C++
    zfoverride
    virtual void objectOnInit(void) {
        zfsuper::objectOnInit();
    }
    // custom init entry
    virtual void objectOnInit(Params...) {
        // your extra init steps
        ...
    }
};

Warning

objectOnInit and objectOnDealloc is called as a virtual function, take good care of other virtual function call, use zfself::func() instead of this->func() if necessary, or use objectOnInitFinish/objectOnDeallocPrepare, or declare your own constructor with ZFOBJECT_DECLARE_WITH_CUSTOM_CTOR

Note

(ZFTAG_LIMITATION) due to limitations of C++, if your parent type declared objectOnInit with different params, and your child type want to override part of those objectOnInit, then your child type must also override all objectOnInit that parent declared, otherwise, some may be hidden

for objects that designed not to be allocated by user, you should use ZFOBJECT_PRIVATE_ALLOC, typically usage:

zfclass MyObject : zfextend ZFObject {
    ZFOBJECT_DECLARE(MyObject, ZFObject)
    ZFOBJECT_PRIVATE_ALLOC("should be created by MyObject::instanceForXxx only")

public:
    static zfauto instanceForXxx(xxx) {
        // can only be allocated by reflection
        return zfself::ClassData()->newInstance();
    }
};
static void func(void) {
    // MyObject *obj = zfobjAlloc(MyObject); // would compile error
    zfauto obj = MyObject::instanceForXxx(xxx); // OK
}

Reimplemented from ZFObject.

objectOnDealloc()

virtual void ZFUIButtonGroup::objectOnDealloc ( void )

protectedvirtual

override this to destroy your object

subclass must call superclass's objectOnDealloc after any other code if override
see objectOnInit for more info

Reimplemented from ZFObject.

---

The documentation for this class was generated from the following file:

• ZFUIButtonGroup.h
